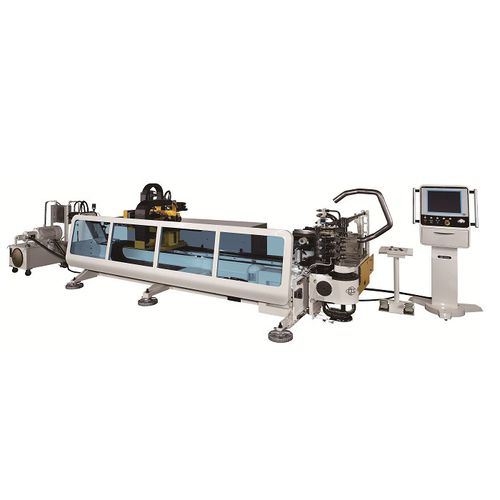

Electric bending machine SB-66X5A-3S-PT (+2C)

tubeCNC5-axis

This line of Booster Tube Benders is specially used in the production of manifolds and converter inlet pipes within the automotive exhaust system, where the wall thinning ratio must be controlled to ensure that the tube can withstand the high system pressure. This line of Booster Pipe Bender equipped with 5 ~ 12 electric axis. Booster tube benders capable of bending radiuses of 1xOD and controlling wall thinning during the bending process All Electric Pipe Bender models available ( 12 Electric Axis ) Enables Wall Thinning Rate down to 15% ~ 20% On electric pipe bending machine, this line bender uses SOCO patented DGT system ( Direct Gear Transmission ) for maximum bending efficiency and precision, minimizing transmission points and interference 2C - SOCO DBS Tube Cutting System ( Double Blades Shearing ) – Option for full automation and minimal cutting deformation, as well as smallest cutting radius to minimize waste between bends ( optional ) Standard with mulitiple servo controlled axis May use from 1 ~ 6 tube bending stacks, applicable for complex, bend-in-bend parts Short / Last bend boosting system for parts which are bent close to the interference zones Clutch ( Automatic Transmission ) Feeding System, enabling shifting between high speed ( normal feeding ) and high torque ( boosting ) for highest bending efficiency May program up to 4 different parts for tube bending and tube cutting on the same tube May use Internal or External collet system ( optional ) IB – Interference Zone Booster for short pieces ( Optional )
