Rooftop fan RCH seriescentrifugalextraction230VAC
Add to favorites
Compare this product
Characteristics
- Installation
- rooftop
- Configuration
- centrifugal
- Function
- extraction
- Supply voltage
- 230VAC
- Drive mechanism
- electrically-powered
- Material
- aluminum
- Other characteristics
- high-performance
- Air flow
950 m³/h, 1,280 m³/h, 1,800 m³/h, 2,500 m³/h
(33,548.933 ft³/h, 45,202.773 ft³/h, 63,566.4 ft³/h, 88,286.667 ft³/h)- Rotational speed
880 rpm, 910 rpm, 1,280 rpm, 1,360 rpm
(5,529 rad.min-1, 5,718 rad.min-1, 8,042 rad.min-1, 8,545 rad.min-1)- Noise level
Min.: 28 dB
Max.: 48 dB
Description

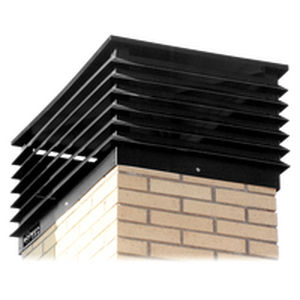

Chimney extract fan and cap for hybrid extraction in community housing
• Specially designed, for the extraction of air in single family or community homes, through chimneys. It allows to maintain an aesthetic and uniform design throughout the house.
• Venturi version for natural extraction only, without extractor.
• The lightness of aluminum allows for quick and easy installation on the roof.
Construction:
• Made of pre-lacquered black aluminium that cannot be altered by atmospheric elements.
• Perfectly designed slats to obtain a high-performance venturi effect.
• Supply voltage at 230 V AC 50 Hz.
Versions:
• BASIC: works with a switch or SI-VENT wind controller.
• VENTURI: natural operation without extractor due to venturi effect.
• TEMPERATURE: Designed for the extraction of air in homes and barbecues with a maximum temperature of 150 ºC.
On request:
• Measures adapted to any fireplace.
