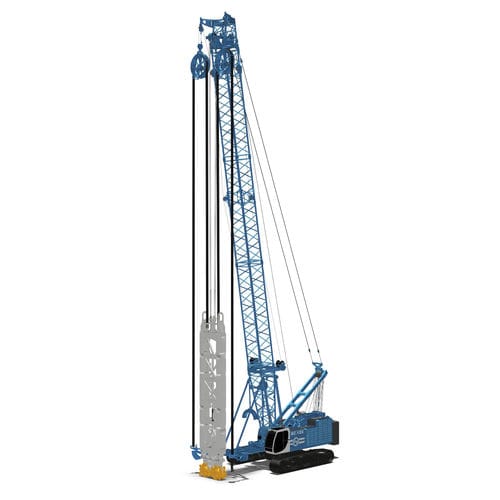

Core drilling drilling rig SC-130
diaphragm wallcrawlermilling

Core drilling drilling rig - SC-130 - SOILMEC S.P.A. - diaphragm wall / crawler / milling
Core drilling drilling rig - SC-130 - SOILMEC S.P.A. - diaphragm wall / crawler / milling
Core drilling drilling rig - SC-130 - SOILMEC S.P.A. - diaphragm wall / crawler / milling - image - 2
Core drilling drilling rig - SC-130 - SOILMEC S.P.A. - diaphragm wall / crawler / milling - image - 3
Core drilling drilling rig - SC-130 - SOILMEC S.P.A. - diaphragm wall / crawler / milling - image - 4
Core drilling drilling rig - SC-130 - SOILMEC S.P.A. - diaphragm wall / crawler / milling - image - 5
Core drilling drilling rig - SC-130 - SOILMEC S.P.A. - diaphragm wall / crawler / milling - image - 6
Core drilling drilling rig - SC-130 - SOILMEC S.P.A. - diaphragm wall / crawler / milling - image - 7
Core drilling drilling rig - SC-130 - SOILMEC S.P.A. - diaphragm wall / crawler / milling - image - 8
Core drilling drilling rig - SC-130 - SOILMEC S.P.A. - diaphragm wall / crawler / milling - image - 9
Add to favorites
Compare this product


Characteristics

Drilling type
core drilling
Applications
diaphragm wall
Mobility
crawler
Drilling unit
milling
Other characteristics
hydraulic, automatic
Sector
construction
Drilling depth

52 m, 70 m
(170'07" , 229'07" )

Machine weight

170 t
(187.4 us ton)

Motor power

563 kW
(765.47 hp)

Description

The demand for diaphragm wall equipment suitable to urban areas and the stringent requirement of verticality make the hydromill Cougar a good and easy option to meet the customer’s needs. The Hose Wheels Design (HWD) is positioned below the cathead so that it can easily follow the hydromill movements with a tensioning and rewinding automatic system. It arises from the need to move simultaneously the hydraulic and bentonite mud circulation hoses to the cutting unit. The SC-130 Cougar is the high performance HWD series, which excavates up to 70 m of depth with approx. 755 HP ensuring a great level of production rates. The SC-130, complying with CE requests of EN16228 upon request, has been conceived to offer the best possible safety solutions. The equipment presents a new safe anti-falling system, handrails and ladders, lashing points, remote control boards and reduced speed mode in order to carry out the main assembly/disassembly operations and maintenance procedures in safe conditions. The DMS (Drilling Mate System), developed by Soilmec and installed on all the products of the range, allows the real-time monitoring of all the operating parameters and of the production process, including a dual-axis positioning sensor (triple-axis version as optional) that controls the geometry of the panel with 2D and 3D graphics print out.

Catalogs

Hydromill
Hydromill
20 Pages
