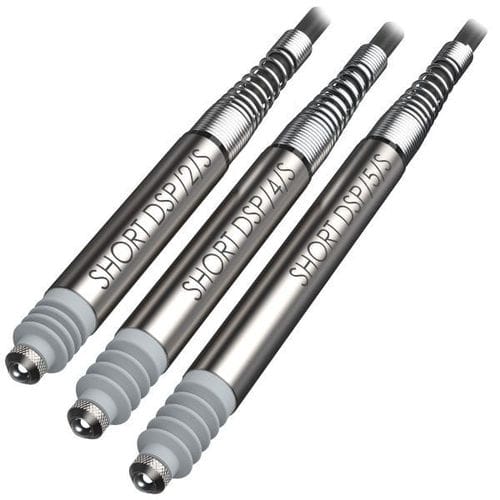

Spring touch probe DSP

spring touch probe
spring touch probe
spring touch probe
Add to favorites
Compare this product


Other characteristics

0.01 µm

Measuring range

2 mm, 4 mm, 5 mm (0.0787 in)


•Same performance as standard digital probes with shorter body •2, 4 and 5 mm measuring range •Accuracy better than 0.1 µm •Repeatability precision better than 0.05 µm •Resolution better than 0.01 µm •Range of contact sensor tips available •Spring actuation •Standard contact sensor tip force 0.7N (other options available) •IP65 sealing •Superior performance compared to traditional Linear Variable Differential Transformer (LVDT) New from Solartron Metrology displacement sensors with short body lengths enabling these gauge probes to be mounted in locations where standard displacement sensors will not fit. Considerably shorter than standard digital displacement sensors and much shorter than conventional LVDT sensors, the short range of digital displacement sensors (DSP) still maintain all of the advantages of LVDT sensors while providing superior performance. Like all Solartron digital displacement transducers the short DSP range is fully compatible with the Orbit Digital Measurement Network making integration of multiple displacement sensors and displacement transducers simple. Data can be read and processed using Solartron readouts or Gauge Computer Software which incorporates basic SPC. For Spring Push Probes, DSP/X/S, like a conventional LVDT the displacement probe tip is pushed out using an internal spring. The precision bearings inside the digital displacement senor ensure precise positioning of the contact senor tip. At the same time the unique bearing design provides repeatable measurements even when the displacement transducer is subjected to mechanical side loads.
