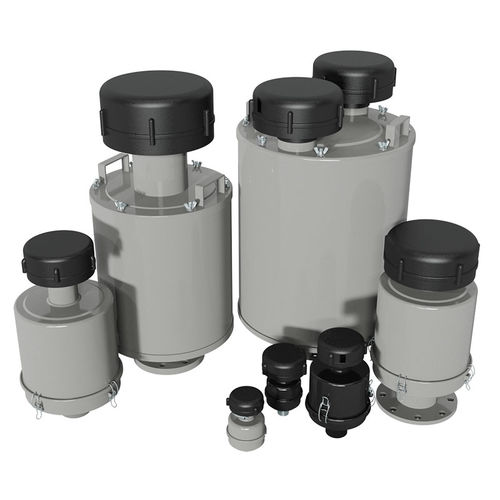

Air filter SM series

cartridgeheavy-dutyintake

Intake air is drawn through the angled louver plates which direct the air to turn the rotor. The centrifugal force separates the contaminants from the airstream, throwing them to the outer perimeter of the cover, expelling them through the discharge port. Cleaner air is drawn to the lower chamber and filtered by a 99% efficient pleated element. Features SpinMeister® made of molded fiber filled composite material All small compact filters with seamless housings Corrosive resistant gray powder coat carbon steel Temp (continuous): min -15°F (-26°C) max 220°F (104°C) Filter change out differential: 15-20" H2O (37‐50 mbar) over initial Δ P Polyester: 99%+ removal efficiency to 5 micron Paper: 99%+ removal efficiency to 2 micron SpinMeister® Precleaner: 85% efficiency to 15 micron Options Tap holes SpinMeisters® available in polished aluminum Selected housings available in stainless steel Modify to meet specific application Applications Blowers-Regenerative Compressor-Piston Compressor-Screw Construction\Contractor Industry Vacuum Coating Vacuum Pumps & Systems
