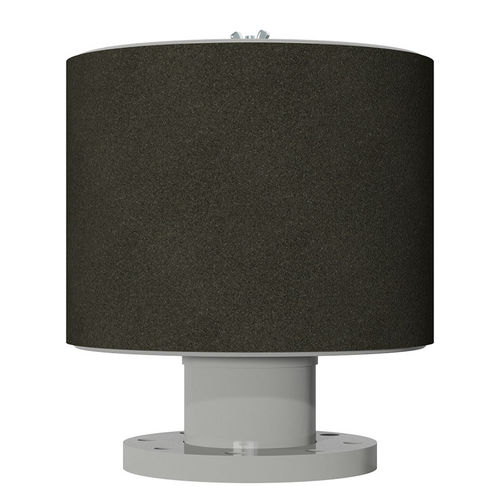

Air filter FT seriescartridgepressurefor blowers
Add to favorites
Compare this product
Characteristics
- Designed for
- air
- Filtration element
- cartridge
- Filtration method
- pressure
- Applications
- for blowers
- Filtration size
Min.: 2 µm
Max.: 5 µm
- Flow
Min.: 17 m³/h
(600.349 ft³/h)Max.: 7,980 m³/h
(281,811.04 ft³/h)
Description
This open (exposed) element filter assembly is a space-saving option for footprint restrictive work areas.
Exposed element for optimal air flow & low restriction
Heavy gauge base with low pressure drop outlet pipe and center bracket design
Corrosive resistant gray powder coat carbon steel
Temp (continuous): min -15°F (-26°C) max 220°F (104°C)
Filter change out differential: 15-20" H2O (37‐50 mbar) over initial Δ P
Pressure drop graphs available upon request
Polyester: 99%+ removal efficiency standard to 5 micron
Paper: 99%+ removal efficiency standard to 2 micron
