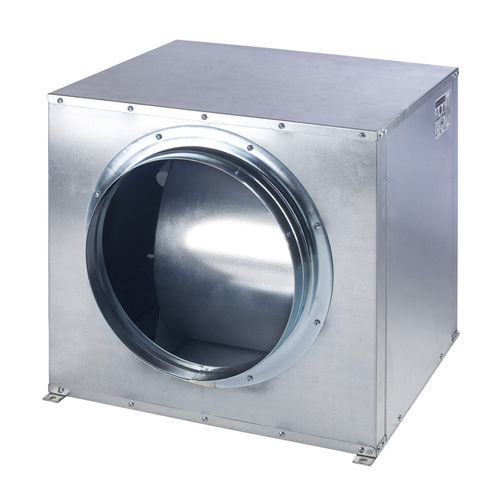

Electrical cabinet fan CVB / CVT CENTRIBOX Seriescentrifugal230VAC400 VAC
Add to favorites
Compare this product
Characteristics
- Installation
- for electrical cabinets
- Configuration
- centrifugal
- Supply voltage
- 230VAC, 400 VAC
- Drive mechanism
- electrically-powered
- Material
- galvanized steel
- Other characteristics
- direct-drive, low-noise, IP55, IP44, with forward-curved blades, outdoor
- Air flow
1,126 m³/h, 2,740 m³/h, 2,859 m³/h, 2,912 m³/h, 4,142 m³/h
(39,764.315 ft³/h, 96,762.187 ft³/h, 100,964.632 ft³/h, 102,836.309 ft³/h, 146,273.35 ft³/h)- Diameter
250 mm, 355 mm, 400 mm
(9.843 in, 13.976 in, 15.748 in)- Rotational speed
900 rpm, 1,400 rpm, 1,455 rpm
(5,655 rad.min-1, 8,796 rad.min-1, 9,142 rad.min-1)- Noise level
Max.: 63 dB
Min.: 44 dB
Description
Cabinet fans manufactured from heavy gauge galvanised steel sheet and internally lined with melamine foam acoustic insulation (M1).
All models incorporate double inlet single phase direct-drive forward curved centrifugal fan fitted with anti vibration mounts and IP55 remote terminal box.
All fans installed in acoustic cabinet fans CVB / CVT CENTRIBOX comply with the efficiency requirements of the ErP Directive.
All cabinets can be installed outdoors as standard.
Motors
Available, depending upon the model, with single phase motors in 4 or 6 poles.
Motors are IP20, IP44 or IP55 (1), Class F insulation, with ball bearings and thermal protection.
All single phase models are speed controllable by tension.
All three phase models are speed controllable by frequency inverter.
Low noise level
Acoustic insulation of 7 mm thickness (M1) melamine foam reducing the noise level significantly.
Outdoor installation
All cabinets can be installed outdoors as standard.
Easy to mount
All models are supplied with four mounting feet to facilitate installation.
Flame retardant IP55 remote terminal box
To ease installation and connection to external controls.
Anti-vibration mounts
Reducing vibration and noise transmission to the installation.
Circular duct connection flanges
In line circular duct connection flanges at the inlet and discharge.
