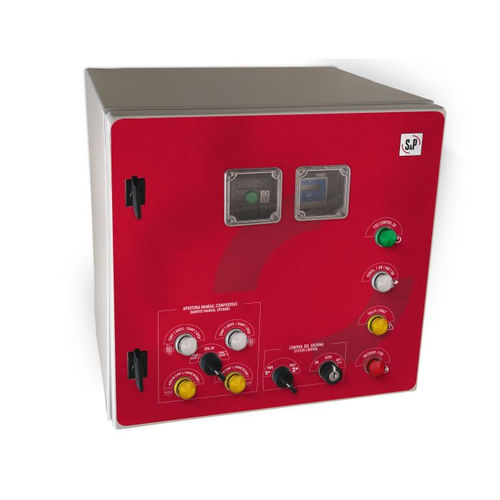

Ventilation system control panel PDS CONTROL MD

automatic

Control panels for Pressure Differential Systems (PDS). Designed and programmed to satisfy the requirements described in EN 12101-6. These allow automatic control of airflow and pressure differential in escape routes, elevators or shelter areas. Series for systems that also require control of a fail-safe motorized damper with integrated optical smoke detector. System Control – Fire fighters key-lock switch AUTO: Automatic control through pressure transducer + VSD (default position). ON: Manual activation of the system with 2 pre-set fan speeds (MIN/MAX). Allows to manually force the MD dampers to open, ignoring the smoke sensor. OFF: Manual STOP and system reset, ignores external signals. Main Features Performance verified in AMCA accredited and ENAC audited laboratory. Key-lock switch for manual override for fire-fighters (ON/AUTO/OFF), also useful for commissioning stage and maintenance operations. AUTO/OPEN for damper control, forces its opening ignoring the smoke sensor. Remote control using PDS REM MD series accessories. Status indicators: PDS CONTROL OK/FAN ON/FAULT/FIRE/DAMPER OPEN/SMOKE IN DAMPER. Calibration-friendly for ease of commissioning and routine maintenance operations. Pre-cabled maneuver for remote activation of daily ventilation, by means of a time programmer. Outputs for status monitoring. Modbus protocol communication available. Modbus notes Modbus RTU. Necessary to input slave address as a factory setting. Modbus TCP/IP through gateway. Option 1 - Available as an accessory. Option 2 - In-built in the unit (upon request).
