Internal hard disk drive emulator CF2SCSI / SCSIFLASH Bering

SCSI3.5"Bering

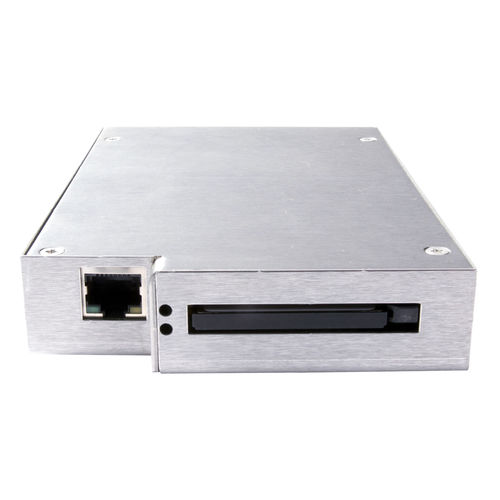

The CF2SCSI / SCSIFLASH Bering Emulator replaces legacy storage disk drives. It operates with many SASI, SCSI-1, or SCSI-2 drives and can be programmed to emulate the host systems requirement.Small format PCB converts Compact Flash Media to appear as a Bering SCSI device on a Host’s SCSI bus3.5” form factor PCB which will replace any 3.5” disk drive or larger drives with adaptorWill fit in a 3.5” disk slot using the same mountingsAllows the CF Cards up to 64GB (SLC) and 256GB (MLC) to attach to the SCSI bus.SCSI Host will typically see the device as a Bering disk drive of any emulationBoard is low power, using 5V only, and has an optional add-on display and pushbutton user interfaceMicrocode is field upgradable via integral serial portOptional integration support available if requiredFLASH2GUI - Optional ethernet support for centralised backup & restore capability available removing the need to rotate media. Primary data storage is always written to the CF card. No software change to the host required.
