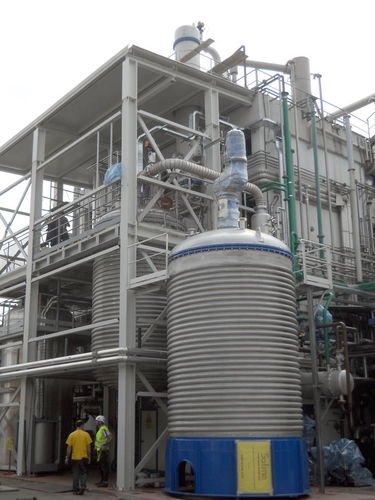

Process bioreactor largepressureATEX
Add to favorites
Compare this product
Characteristics
- Applications
- process
- Configuration
- large
- Treatment method
- pressure
- Other characteristics
- ATEX
Description
The design and realization of reactors is the heart of our production.
capacity from 500 to 200,000 liters
welded or flanged roof
heating/cooling system by jacket, single or double effect half pipe, dimpled coil, internal coils and by application of internal shell and tube heat exchangers
installation of mechanical agitators in the various configurations required (marine propeller, multiblade, anchor, cowless disc, turbine, high flow)
construction materials according to the customer’s specific needs (stainless steel, duplex and super-duplex, hastelloy)
PED, ATEX, ASME certification
inner surfaces F1, 2B, satin finish, mirror polished to Ra<0.25 micron
external surfaces F1, 2B, satin finish, mirror polished to Ra<0.45 micron
Catalogs
No catalogs are available for this product.
See all of SO.L.ME SRL‘s catalogs
