Chamber furnace PO 650-P1 series
heat treatmentelectricair circulating

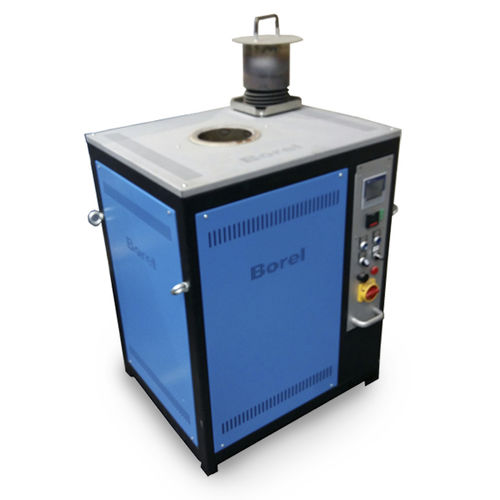

Chamber furnace - PO 650-P1 series - SOLO Swiss & BOREL Swiss - heat treatment / electric / air circulating
Chamber furnace - PO 650-P1 series - SOLO Swiss & BOREL Swiss - heat treatment / electric / air circulating
Chamber furnace - PO 650-P1 series - SOLO Swiss & BOREL Swiss - heat treatment / electric / air circulating - image - 2
Chamber furnace - PO 650-P1 series - SOLO Swiss & BOREL Swiss - heat treatment / electric / air circulating - image - 3
Add to favorites
Compare this product
Go to the SOLO Swiss & BOREL Swiss website for more information

Characteristics

Configuration
chamber
Function
heat treatment
Heat source
electric
Atmosphere
air circulating
Maximum temperature

650 °C
(1,202 °F)

Capacity

Min.: 7.1 l
(1.88 gal)

Max.: 19.9 l
(5.26 gal)

Width

800 mm, 810 mm
(31.5 in, 31.89 in)

Height

1,020 mm, 1,093 mm
(40.16 in, 43.03 in)

Depth

650 mm, 700 mm
(25.59 in, 27.56 in)

Description

Construction: Robust construction made of bent plate. Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks. Ventilation: Air circulation by a turbine to improve homogeneity within furnace. Heating: Battery of shielded electrical resistors. Electricity: 3x400 VAC, 50 Hz. Regulation: PID Axron Swiss digital temperature controller. Timer. Documentation: CE marking and operating instructions in English. Delivered with: Furnace basket. Options available upon request: Axron Swiss Temperature Programmer, Extra basket, Time and temperature recorder, Software for PC control and recording, Extended warranty.
