TIG welder AEROTIG 2330
single-phaseACDC

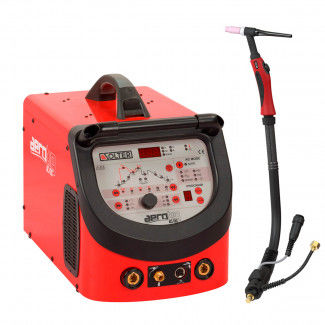

TIG welder - AEROTIG 2330 - SOLTER® - single-phase / AC / DC
TIG welder - AEROTIG 2330 - SOLTER® - single-phase / AC / DC
TIG welder - AEROTIG 2330 - SOLTER® - single-phase / AC / DC - image - 2
TIG welder - AEROTIG 2330 - SOLTER® - single-phase / AC / DC - image - 3
TIG welder - AEROTIG 2330 - SOLTER® - single-phase / AC / DC - image - 4
TIG welder - AEROTIG 2330 - SOLTER® - single-phase / AC / DC - image - 5
TIG welder - AEROTIG 2330 - SOLTER® - single-phase / AC / DC - image - 6
TIG welder - AEROTIG 2330 - SOLTER® - single-phase / AC / DC - image - 7
TIG welder - AEROTIG 2330 - SOLTER® - single-phase / AC / DC - image - 8
Add to favorites
Compare this product

Characteristics

Technique
TIG
Power supply
single-phase
Output current
AC, DC
Other characteristics
inverter
Intensity

200 A

Output frequency

500 Hz

Description

Duty cycle at 40ºC: 45% Intensity at 60%(100%) 40ºC: 170A (140A) Regulation: 10 - 200A (10,4 - 18,0V) Usable electrodes: 1,6 - 4.0mm Connection: 1ph-230V Usable range: 180V-280V OCV: 65V Max. absorbed power: 9,5Kva Fuse: 25A Ventilation: Double AUTO Weight: 14 kg Regulation panel: AEROTIG “ac/dc pulse” Norms: EN 60974-1, EN 60974-10 Protection Index: IP23 Tig usable electrodes: 1,6mm - 2,4mm Dimensions: 465x280x360mm Pulse freq.: 500Hz
