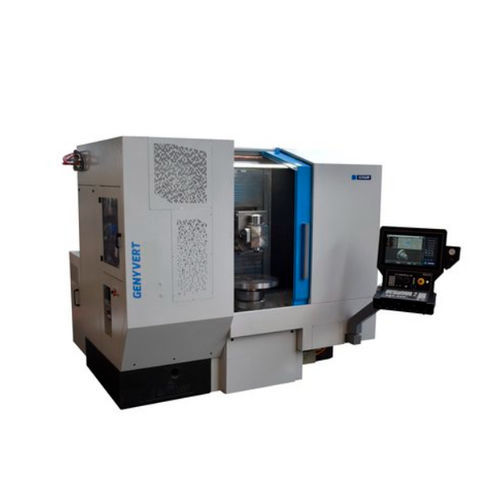

CNC milling-turning center GENYMAB 400

vertical5-axisspindle

• Reconstituted granite monobloc base • Fixed support (non-rotating) for turning tools: o turning tool support at 45° to resume cutting forces • Head rigidity allows to machine with long boring bars • Elaborated machining: grooves, plunge milling, • External gears with module mill or mother mill • Internal gear by slotting EQUIPMENT B axis can be mechanicaly clamped in 144 positions with Hirth teeth at 2,5° 28 positions Tool magazine capacity3 jaws automatic self-centering chuck Chip conveyor 7 bars coolant system with 30µm filter cartridge Full protection with sliding front door and security lock Automatic volumetric greasing interior lighting Spindle power display (percentage of available power) OPTIONS: medium or high pressure coolant system: 14 bars, 35 bars... workpiece probe tool probe DELIVERABLE: Isolation transformer ISO40, 45° toolholders for turning tool size 25x25 HEIDENHAIN TNC 640 HSCI sliding and swiveling operator console 15" TFT BF 750 Flat screen alphanumeric keypad with intergrated touch pad for mouse 160 Go Hard disk FrontUSB Connection Connection to ETHERNET network with RJ 45 A remote handwheel ALTERNATIVE: SIEMENS 840D sl with Conversational SHOPTURN sliding and swiveling TCUoperator console Flat screen 15 "color TFT QWERTY alphanumeric industrial keypad HMI operate A remote handwheel USB connection
