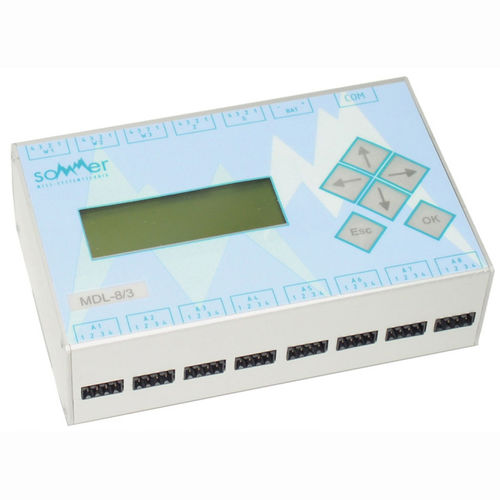

Air velocity data-logger MDL 8/3

GSM / GPRSRS-232with LCD display

The data loggers of the MDL family are reliable everywhere, where measuring data have to be precisely gathered, saved, processed and documented under extreme environmental conditions. The MDL 8/3, the most comprehensive data logger has got eight analogue inputs and three for wind parameters. Features and advantages - Diverse possibilities of saving data: by interval, by condition or by event - Actual value, minimum, maximum, mean value, sum, intensity, peak - Comprehensive alarm functions via SMS, modem call or switch contact - Quick retrieval of the actual measuring values via SMS - Failsafe data saving for up to 600.000 records - Quick and assistant-supported parametrisation - Easy connection of diverse sensors by automatic internal input configuration - Extension options - MDL-AE4: 4 x additional analogue inputs incl. channel extension - MDL-AE8: 8 x additional analogue inputs incl. channel extension - Channel extension for MDL 8/3 for additional measurement variables - Second serial interface for serial sensors or connection of radio device (e.g. SOMMER DFM-433) to connect to other weather stations via radio FIELDS OF APPLICATION The MDL 8/3 has been developed for comprehensive request for environmental monitoring. It is a station manager to establish big or spread measuring stations. With a robust, reliable and economic design and technics, the MDL 8/3 is optimized for the usage in remote areas off any infrastructure.
