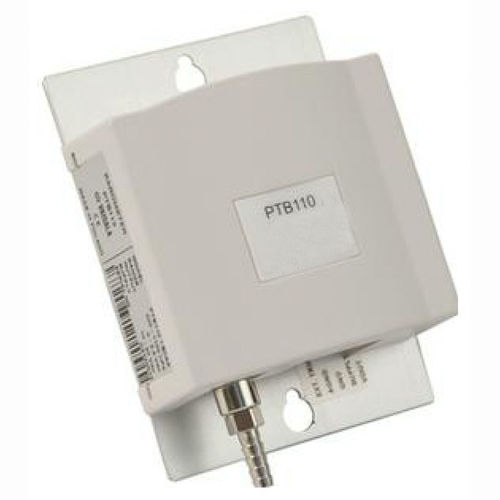

Barometric pressure sensor PTB110wall-mounted
Add to favorites
Compare this product
Characteristics
- Pressure type
- barometric
- Mounting
- wall-mounted
- Pressure range
Min.: 60,000 Pa
(8.7 psi)Max.: 106,000 Pa
(15.37 psi)- Precision
0.3 %
- Process temperature
Min.: -40 °C
(-40 °F)Max.: 60 °C
(140 °F)
Description
The air pressure sensor PTB110 measures the barometric pressure and is made for the installation in a radiation protected switch cabinet or weather shelters. It has got a high long-time stability and can be used in a harsh climatic environment.
TECHNICAL DETAILS
Linearity 0.25 hPa
Hysteresis 0.03 hPa
Output voltage 0 ... 2.5 V DC
Power supply 10 ... 30 V DC
Power consumption less than 4 mA (standard operation)
Weight 90 g
