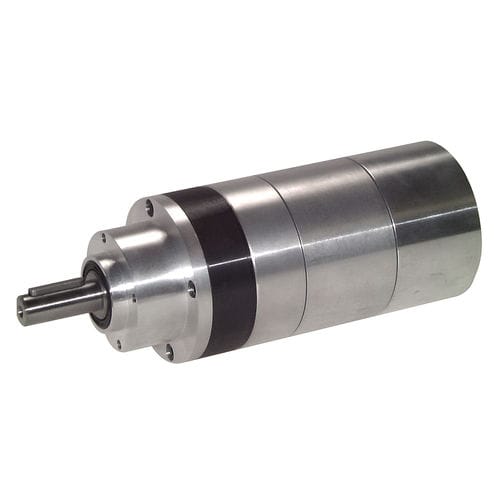

Vane air motor R seriessteelaluminum
Add to favorites
Compare this product
Characteristics
- Technology.
- vane
- Other characteristics
- steel, aluminum
- Torque
Max.: 60 Nm
(44.25 ft.lb)Min.: 3.8 Nm
(2.8 ft.lb)- Rotational speed
Max.: 4,000 rpm
(25,132.74 rad.min-1)Min.: 30 rpm
(188.5 rad.min-1)- Power
800 W, 1,000 W
Description
Air Vane Motors 800/ 1000 has an anodized aluminum with a shaft of Steel ETG100 and special synthetic material with high durability blades. Its compressed air temperature is +10 °C...+40 °C with a maximum environmental temperature of + 80 °C although there is a danger of the tool to ice up with a temperature beneath -5 °C. The pressure range of the Air Vane Motors is 0,5 to 7 bar. It is also incorporated with mounting flange and mounting bracket.
