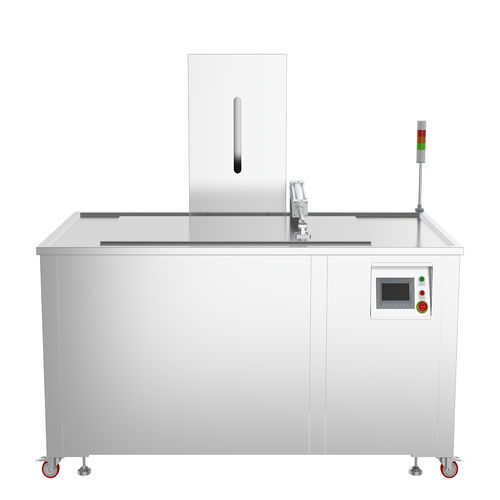

Ultrasonic cleaner with filtration system AU-800

stainless steelwith automated loadingindustrial

Highlights: 7-inch Siemens Touchscreen and PLC Controlled by the latest generation Siemens touchscreen and PLC system. Sound Proof Advanced acoustic sound insulation reduces noise to a minimum. Filtration System Recycle-filtration system for filtering waste and mud. The filter is easily replaceable. Heat Insulation Thermal insulation ensures the operator is protected from hot surfaces as well as improved durability. Oil Skimmer Thermal insulation ensures the operator is protected from hot surfaces as well as improved durability. Features: Siemens PLC controller Siemens 7-inch touchscreen Agitation system with support for 500kg load Filtration system Adjustable laminar flow system Oil separation system with oil skimmer system PLC controlled flow system (inlet, LFS) Automatic lid (diamond-shaped lid *new for 2021) Motor-driven lift Temperature variation flow system Adjustable limit temperature Air blow gun for parts drying Auto-fill system Eco-mode Stack light and alarm Programmable functions Sound insulation Heating insulation Custom size and add-on options available according to the client’s request Specifications: Model : AU-800 Volume *: 800 litres Tank Size (LxWxH) : 123 x 80 x 38 CM Basket Size (LxWxH) : 124 x 81.5 x 14 CM Device Size (LxWxH) : 223.5 x 207 x 199.5 CM Ultrasonic Power : 9600 watts Heating Power : 18000 watts Frequency : 28 kHz, 40kHz, … *Volume is based on the calculations of the dimension of the tank
