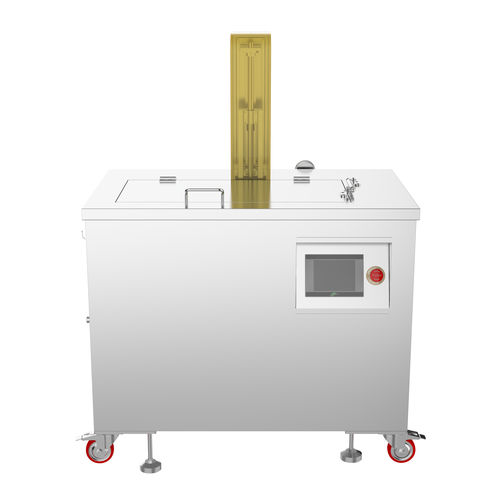

Ultrasonic cleaner with filtration system AL-75

with timerstainless steelfor electronics

The Sonixtek AL-75 ultrasonic cleaner is designed for industrial and professional demanding applications where powerful cleaning is required. Its innovative automated lifting system with agitation allows easy loading and unloading of objects in the tank, and the agitation function provides better cleaning. The machine is driven by a Siemens PLC and is controlled via a large 7-inch touch screen. The filtration system with an oil separation system ensures that the cleaning solution can be used several times. Features: 7-inch touchscreen Siemens PLC Adjustable ultrasonic power Sweep and Degas function Adjustable heating from 20°C to 100°C Integrated laminar flow system Filtration system with oil separation system with optional oil skimmer Pneumatic lifting system up to 1000 kg Agitation function Innovative diamond-shaped lid with insulation Air blow gun for drying the parts Stainless steel tank Adjustable levelling feet Multidirectional and lockable castor wheels Stainless steel 316 replaceable transducer boxes Custom sizes and options available according to requirements Specifications: Model: AL-75 Volume *: - 75 litres Tank Size (LxWxH): 650mm x 355mm x 470mm Basket Size (LxWxH): 620mm x 325mm x 40mm Device Size (LxWxH): 1130mm x 765mm x 1488mm Ultrasonic Power: 1500 watts Heating Power: 3000 watts Frequency: 28 kHz, 40kHz,
