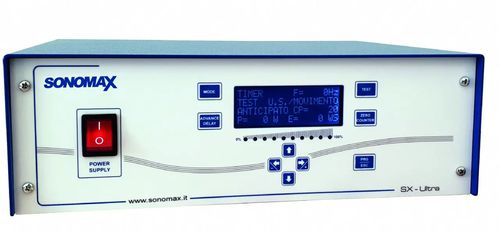

Multi-frequency ultrasonic generator ULTRA SERIES

benchtop

All generators are digital and equipped with a backlit display, easy to use thanks to the menu where already on the main page, with the vertical and horizontal scrolling cursor and only one confirmation key, it is possible to manage the main parameters to obtain an excellent welding. They work with a voltage of 230V (on request 115V-240V). The sonotrodes or welding tips are designed and manufactured with the application in mind, in order to best meet the customer's requirements. Supply voltage: 230V (on request 115V-240V) Noise filter Welding time adjustment Energy regulation Amplitude adjustment 30-100% (optional) Frequency control function Counting function Energy control function Overload protection circuit Temperature protection circuit Cooling fan Polypropylene carrying case (on request for SX-SX40-SX30-800W models) Can be used with: Linear actuators 20 - 30 - 40 kHz Manual pistol grip 30 - 40 kHz Plastic sleeve handle 30 - 40 kHz 30 - 40 kHz cutting system for insertion into automatic implants Psx welding machine 30 - 40 kHz
