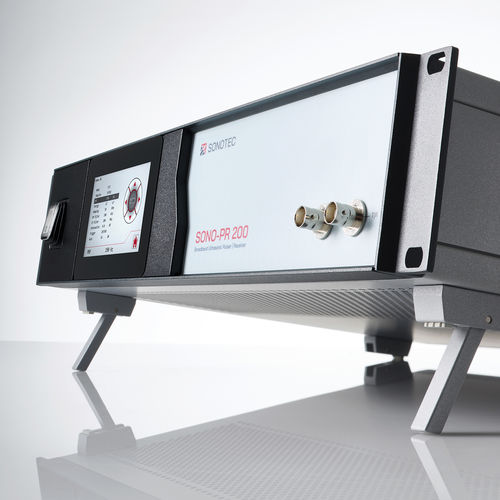

Ultrasonic pulser-receiver SONO-PR 200

broadband

SONO-PR 200 BROADBAND ULTRASONIC PULSER-RECEIVER Advantages: - Very high bandwidth - Large quantity of filters - Extremly low noise - Powerful spike pulser Applications - Wall thickness measurement and flaw detection - Immersion testing and squirter applications - Acoustic microscopy Reliably replaces obsolete technology Thanks to its extremely wide frequency range, the SONO-PR 200 pulser-receiver covers various areas of application: from ultrasonic testing on the widest range of materials including wall thickness measurement to immersion technology and squirter applications through to acoustic microscopy. The possibility of remote control via serial interface, various trigger options as well as digital inputs and outputs make the SONO-PR 200 ideal for integration into automated testing facilities. Numerous high pass and low pass filters The individually configurable high and low pass filters enable specific adjustment to the application in order to achieve a max. signal-to-noise ratio. Powerful spike pulser The minimal rise times of < 1 ns enable optimum excitation of high-frequency test heads. Furthermore, the variety of adjustable energy levels enables the widest range of designs of ultrasonic test heads to be actuated. General specifications - Standards - 2011/65/EU RoHS; 2014/30/EU; 2014/35/EU, DIN EN 61326-1:2013 Protection class - IP 20 Bandwidth - 0,1 MHz to 200 MHz Measurement methods - Impulse-Echo, Pulser-Receiver Operating temperature - 0 °C to + 60 °C Storage temperature - -20 °C to + 80 °C Display - 4.3“ LCD TFT colour screen display 480 x 272 pixels, touch panel Rack - 4.3“ LCD TFT colour screen display 480 x 272 pixels, touch panel
