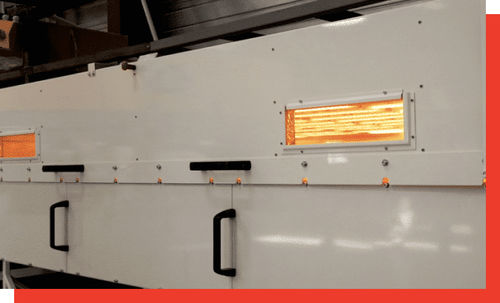

Chamber oven Ortho Swir series

infraredelectricdigital

Product overview

• Designed specifically for orthopedics by thermal professionals.
• Fast and even instantaneous heating across the entire oven surface without preheating.
• Precise temperature control (PID) from 30 to 250°C.
• Energy-efficient short-wave infrared heating.

Models (3 standard models)
Dimensions in mm — Power — Reference
1 000 x 1 300 — 9 kW — Ortho Swir 9
2 000 x 1 200 — 12 kW — Ortho Swir 12
2 000 x 1 500 — 16 kW — Ortho Swir 16

Other dimensions / other power
Available on request

Example of heating time on polyethylene plate
Thickness — Heating temperature — Heating time
3 mm — 185°C — xx min
5 mm — 185°C — xx min
8 mm — 185°C — xx min
10 mm — 185°C — xx min

Electrical Control

• Temperature measurement by non-contact infrared pyrometer on the thermoforming plate.
• Short-wave infrared lamps for rapid, precise heating and homogeneous temperature distribution.

Construction

• Cold-wall double-skin oven construction.
• Automatic lamp shutdown on door opening for operator safety.
• Mobile trolley on wheels for site positioning.
• Standard PTFE plate or removable polyethylene plate.

Options

• Two independently controlled heating zones.
• Touch-screen control.
• Multi-language user interface.

Technical specifications

• Temperature regulation range: 30 to 250°C (PID controller).
• Regulation method: non-contact infrared pyrometer on the thermoforming plate.
• Heating source: short-wave infrared lamps for fast, precise and homogeneous heating.
• Standard powers: 9 kW, 12 kW, 16 kW (Ortho Swir 9 / 12 / 16).
• Standard working dimensions (mm): 1 000 x 1 300; 2 000 x 1 200; 2 000 x 1 500.
• Construction: cold-wall double-skin oven.
• Safety: automatic lamp shutdown on opening.
• Mobility: trolley on wheels.
• Plate options: PTFE plate or removable polyethylene plate.
• Available options: 2 heating zones, touch screen, multi-language UI.
