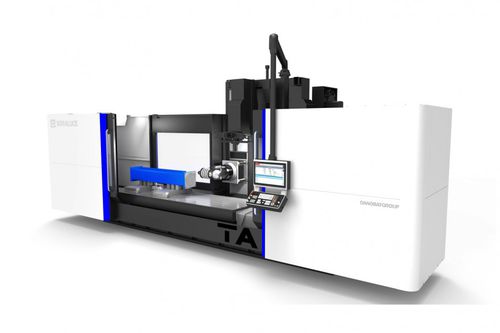

3-axis CNC milling machine TA

universalfixed-bed40 tools

Much more than a machining center providing higher working volume, power, torque and cutting capacity. Best geometric stability through water-based cooling and real time thermal compensation. Solutions adapted to your needs: New choice of milling heads with higher spindle speed and easy integration of milling & turning tables. Ergonomics & Easy maintenance. Technical data It enables for: Automatic indexing of vertical and diagonal articulations. Automatic head changing. Internal / external cooling system. Suitable for any type of taper and pull-studs. Different clamping forces for different tools. Suitable for setting different accessories. 32 / 43 / 46 / 55 kW 2.5° x 2.5° / 1° x 2.5° / 0.001° x 0.001° 4000 / 5000 / 6000 / 7000 min-1 Its compact design is specially conceived for machines with an in-line motor. It allows the simultaneous positioning of both head articulations, reducing non-production time. Inverse machining capability: Up to -45º No additional setups Improved cycle time Better finishing quality Minimum manipulation Full advantage of machine travel No need for additional work piece support fixtures Close to table head spindle accessibility for both front and lateral milling 37 / 43 kW 1º x 1º 4000 min-1
