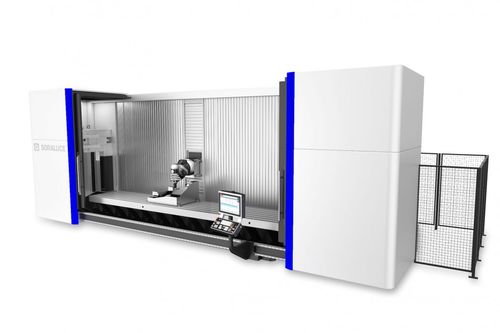

3-axis CNC milling machine SA

universalwith fixed tabletraveling-column

Proven quality components: high performance 7000 rpm heads, direct drive inline motor and robust software. Best geometric stability through water-based cooling and real time thermal compensation. Solutions adapted to your needs: New choice of milling heads with higher spindle speed and easy integration of milling & turning tables (Rotary milling / turning table size: Ø 1000 mm / Max. swing: Ø 1500 mm). Set & Go: Less footprint in the workshop. Less expensive foundation. Easy transport & installation. Ergonomics & Easy maintenance. Technical data It enables for: Automatic indexing of vertical and diagonal articulations. Automatic head changing. Internal / external cooling system. Suitable for any type of taper and pull-studs. Different clamping forces for different tools. Suitable for setting different accessories. 32 / 43 / 46 / 55 kW 2.5° x 2.5° / 1° x 2.5° / 0.001° x 0.001° 4000 / 5000 / 6000 / 7000 min-1 Its compact design is specially conceived for machines with an in-line motor. It allows the simultaneous positioning of both head articulations, reducing non-production time. Inverse machining capability: Up to -45º No additional setups Improved cycle time Better finishing quality Minimum manipulation Full advantage of machine travel No need for additional work piece support fixtures Close to table head spindle accessibility for both front and lateral milling 37 / 43 kW 1º x 1º 4000 min-1
