3-axis CNC milling machine

universalprecisionhigh-productivity

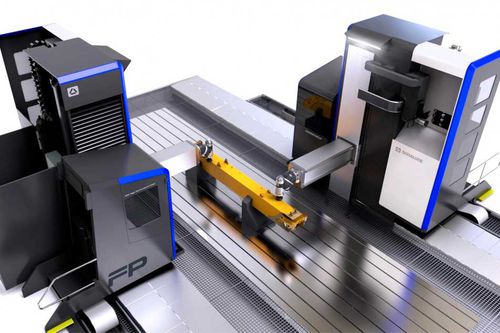

DUPLEX milling machines are two machines located one opposite the other, which can work separately or as a single milling machine, when workpiece can be machined with 2 simultaneous spindles. Main advantages of duplex solution: Production increase of up to 50% in relation to conventional solutions, i.e. individual milling machines Improvements in part precision, by managing to do the machining of the part in one single setup, in most of the cases One sole operator can control the DUPLEX milling machines Reduced space and investment requirement comparing with two single machines Fast investment amortisation due to the high productivity Duplex solution admits different configurations: single working area, pendulum working areas or pallet changing system DUPLEX PACK by Soraluce: Specific cycles and options by Soraluce: Double control panel to operate both machines from a single position and only by one operator Synchronization of the CNC programs to increase productivity Fixed points search cycles Transmission cycle of zero points between the machines M functions for program synchronism Anti collision system Technical data It enables for: Automatic indexing of vertical and diagonal articulations. Automatic tool changing. Automatic head changing. Internal / external cooling system. Suitable for any type of taper and pull-studs. Different clamping forces for different tools. Suitable for setting different accessories. 32 / 43 / 46 / 55 kW 2.5° x 2.5° / 1° x 2.5° / 0.001° x 0.001° 4000 / 5000 / 6000 / 7000 min-1
