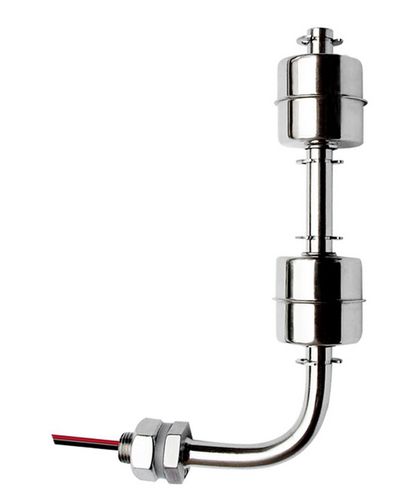

Magnetic float level switch SF132
for waterfor tankfor home appliances

magnetic float level switch
magnetic float level switch
magnetic float level switch
magnetic float level switch
Add to favorites
Compare this product


Characteristics

Technology
magnetic float
Medium
for water
Applications
for tank, for home appliances
Material
stainless steel
Other characteristics
multi-point, reed switch
Process temperature

Min.: -40 °C
(-40 °F)

Max.: 80 °C
(176 °F)

Description

Magnetic float-level switch principle is the float which link to rod equipped with a constant magnetic field, because of the liquid level rise or fall, make the float internal generated magnetic field , thus triggered the reed switch which inner the rod working. Widely used in liquid level measurement, liquid level alarm and level security control field. Features: - No standby power requirement - Customer can defined activated range and connection - enclosure material: engineering plastic - High stability, high reliability, high consistency Applications: - Water cooler, coffee machine, water dispenser, humidifier, etc - Level control, level measurement - Container level detection - Home appliance level detection
