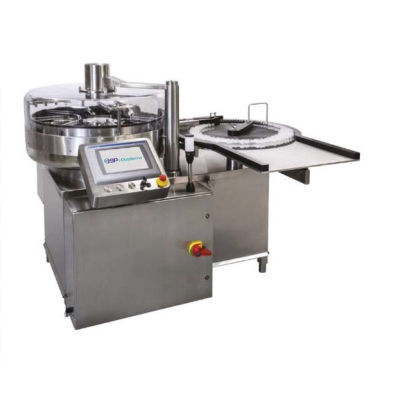

Automatic vial washer i-Dositecno RW-500

automatic vial washer
automatic vial washer
automatic vial washer
automatic vial washer
automatic vial washer
automatic vial washer
automatic vial washer
Add to favorites
Compare this product


Operational mode


RW-500 VIAL WASHER Dimensions 133x128cm Purpose Smallest automatic vial washer and is designed for low-to-medium output pharmaceutical and biotech applications Vial Range 1-100ml (change parts required) Output Up to 120 vials per minute (dependent on the vial format) Changeover 20-minute changeover to a different vial format Features - Typical batch size: 10,000-25,000 vials - 8 vial holders that hold up to 6 vials at the neck - Rotary infeed table with automatic loading of the vials into the vial holders - A transparent cover permits visual verification of the washing process - Dedicated media manifolds (1 for water, 1 for air) - Recycling of WFI, intermittent spraying and automatic lid lift mechanism - GMP design: All 304/316L stainless steel - Main drive is servo-driven - Intrinsically designed for 3-log endotoxin reduction - Allen-Bradley Micrologix 1100 PLC that works in conjunction with an Allen-Bradley PanelView 600+ operator interface - Each vial format has an HMI selected “recipe” with specific settings for spray time and indexing time to help reduce water consumption - Water for injection (WFI) can be recycled, filtered and used a second time, further reducing water consumption - No penetrating nozzles, no glass breakage, less particulate generation - Self-draining after end of batch - Internal surfaces are electro polished - Orbital welding is used whenever possible - Piping system is designed to run from high to low to prevent water stagnation - Silicone seals are used throughout the piping system - Optional WFI-skid to supply the WFI at 80°C (no need for a WFI-loop) - Complete validation documents package available (FRS, DDS, FAT/SAT, IQ/OQ)
