Logistic sorter

for the pharmaceutical industryopticalautomated

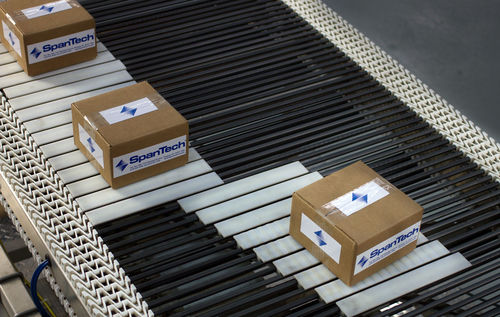

Sort & Merge products with ease. The high-speed switch divides your products effectively, while maintaining product pitch. Need to split product flow while maintaining product pitch? It’s what we designed our high-speed switch to do, and at a speed that can’t be overlooked. We currently have high-speed switches splitting product flow at up to 400 fpm. Products are transferred along by a series of carriers which are supported by guide rods. Everything is powered by a pair of MonoSpan conveyor chains. Product flow can be split evenly (1 lane to 2, 2 lanes to 3, etc.) or can be programmed to divert a product whenever you need it! RULES OF THUMB Max Speed : 350 fpm (Unless approved by design department) Maximum Carrier Rod Length: 48″ Minimum Product Length: 4″ Minimum Carrier Offset: 1:3 or greater = 4.75″ There must be 4 inches of gap between successive products. Uses coated steel rods or anodized aluminum rods. High Speed Switches will not run in reverse. Features 1:2, 1:3, 1:4 2:4, converging, and sorting applications are available Carrier rods are supported between and driven by a pair of our MonoSpan conveyor chains Rated for continuous 24 hours/day operation Virtually crash proof with the patented toggle system design Designed for rigid or bagged (not bulk) product OPTIONAL: Lexan Guarding for Safety Learn More Applications Packaging Distribution E-Commerce
