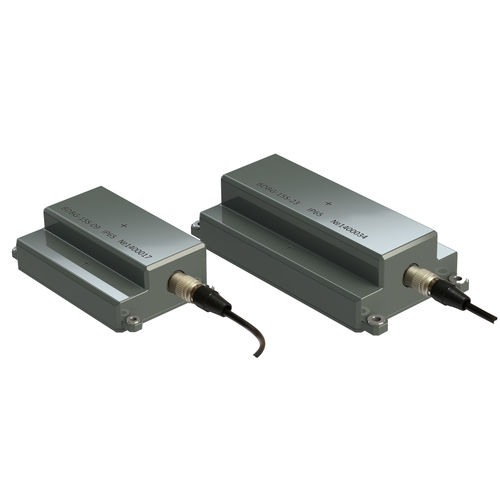

Gamma radiation scintillation detector BDBG-15S

IP65

Detecting Unit of Gamma Radiation The best choice for unmanned aerial vehicles and mobile robotic devices Highly-sensitive scintillation detector No microphone effect IP65 ingress protection rating Description BDBG-15S is designed to measure ambient dose equivalent rate of gamma radiation in a wide range of values. Suitable for unmanned aerial vehicles, mobile robotic devices and automated systems of radiation monitoring. The distinctive features of this unit are high sensitivity with minimal weight and dimension parameters, high mechanical resistance and lack of microphone effect. Ingress protection rating of the unit is IP65. Measurement range can be extended up to 5.0 Sv/h at the customer’s request. BDBG-15S is available in two modifications: BDBG-15S-09 and BDBG-15S-23, which differ in size and sensitivity of scintillation detector. Purpose of Use Intelligent detecting units for measurement of ambient dose equivalent rate (DER) of gamma radiation in a wide range of values.
