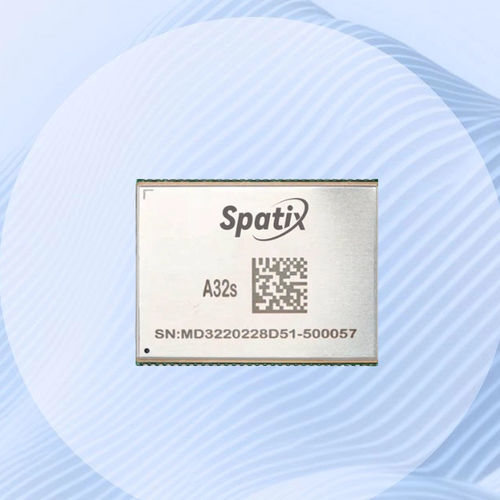

BeiDou GNSS module A32s

QZSSGALILEOSBAS

Overview
A32s module is a GNSS high-precision dual-antenna module suitable for various user groups such as UAV, precision agriculture, machine control, robotics and autonomous applications. It is a single-board solution for precise position and heading. The product delivers multiconstellation RTK baselines between two connected antennas and to a remote base station. It integrates SpatiX SuperRTKTM, SmartPPP® and Heading technology and can provide positioning and direction information to users within a centimeter range.

Key Features

• Multi-constellation and multi-frequency support
• Anti-interference algorithm and multi-path suppression technology
• SpatiX SuperRTKTM, SmartPPP® and Heading technology inside
• Compact size and low power consumption

Applications

• Measurement
• Precision agriculture
• UAV
• Lawn mowers
• Machine control
• Autonomous driving
• GIS
• Monitoring

Performance
GNSS technology | Signal Tracking | BDS: B1I, B1c, B2a, B2I, B3I; GPS: L1C/A, L2P, L2C, L5; GLONASS: L1C/A, L2C/A; Galileo: E1C/A, E5a, E5b; QZSS: L1C/A, L2C, L5; SBAS: L1C/A, L5; MSS L-Band: QXWZ XStar
Channels Count: 1520
Time to First Fix (TTFF) | Cold Start: 40 s; Warm Start: 20 s; Signal Re-acquisition: 1 s
Measurements Accuracy | Pseudorange: 15 cm; Phase: 1 mm
Position Accuracy | Standalone: Horizontal 2 m, Vertical 4 m
RTK Performance (Single Baseline): Horizontal 0.8 cm + 1 ppm; Vertical 1.5 cm + 1 ppm; Initialization Time ≤ 8 s; Initialization Reliability ≥ 99.9%
RTK Performance (Network): Horizontal 0.8 cm + 0.5 ppm; Vertical 1.5 cm + 0.5 ppm; Initialization Time ≤ 8 s; Initialization Reliability ≥ 99.9%
PPP-AR Performance: Initialization Time < 6 min; Horizontal < 2.5 cm; Vertical < 10.0 cm
PPP-RTK Performance: Initialization Time < 2 min; Horizontal < 2.5 cm; Vertical < 10.0 cm
Static: Horizontal 2.5 mm + 0.5 ppm; Vertical 5.0 mm + 0.5 ppm
Maximum Data Rate: Measurements 20 Hz; Position 20 Hz; Heading 10 Hz
Formats: Reference outputs RTCM3.x; Navigation outputs NMEA-0183 & QX Binary Format (SIB)
Connectivity: Serial Ports 3 × UART (LV-TTL); 2 × CAN; 1 × SPI; 2 × USB (Host/Device); 1 × 1PPS (LV-TTL); Event Mark
Electrical: Input Voltage 3.3 VDC ±5%; Power 1.2 W; Vcc Maximum ripple 50 mV; ESD ±2000 V
Environmental: Operating Temperature -40 ℃ ～ +85 ℃; Storage Temperature -40 ℃ ～ +85 ℃; Vibration GJB150.16A-2009, MIL-STD-810; Mechanical shock GJB150.18A-2009, MIL-STD-810
Physical: Size 40.0 mm × 31.0 mm × 3.0 mm; Weight ≤ 8.5 g

Specifications

• Model: A32s
• GNSS signals supported: BDS, GPS, GLONASS, Galileo, QZSS, SBAS, MSS L-Band
• Channels: 1520
• TTFF: Cold Start 40 s, Warm Start 20 s, Re-acquisition 1 s
• Measurements accuracy: Pseudorange 15 cm; Phase 1 mm
• Position accuracy (RTK single baseline): Horizontal 0.8 cm + 1 ppm; Vertical 1.5 cm + 1 ppm
• RTK network accuracy: Horizontal 0.8 cm + 0.5 ppm; Vertical 1.5 cm + 0.5 ppm
• PPP-AR: Initialization < 6 min; Horizontal < 2.5 cm; Vertical < 10 cm
• PPP-RTK: Initialization < 2 min; Horizontal < 2.5 cm; Vertical < 10 cm
• Static accuracy: Horizontal 2.5 mm + 0.5 ppm; Vertical 5.0 mm + 0.5 ppm
• Max data rate: Measurements 20 Hz; Position 20 Hz; Heading 10 Hz
• Reference outputs: RTCM3.x; Navigation outputs: NMEA-0183 & QX Binary (SIB)
• Interfaces: 3×UART (LV-TTL), 2×CAN, 1×SPI, 2×USB (Host/Device), 1×1PPS (LV-TTL)
• Power: Input 3.3 VDC ±5%, Typical power 1.2 W
• ESD protection: ±2000 V
• Operating / Storage temperature: -40 ℃ to +85 ℃
• Shock & vibration: GJB150.16A-2009 & GJB150.18A-2009; MIL-STD-810 compliant
• Dimensions: 40.0 mm × 31.0 mm × 3.0 mm
• Weight: ≤ 8.5 g
