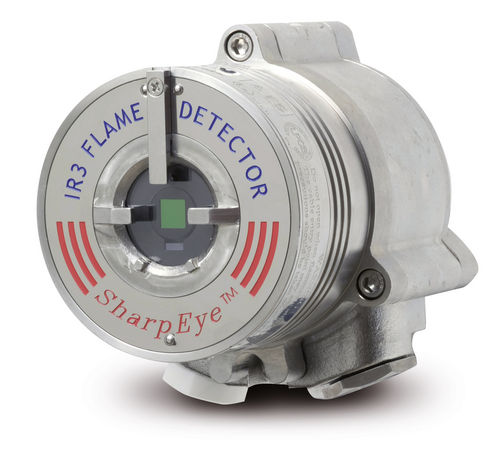

IR flame detector SharpEye 40/40I

for fire safety applicationsmulti-spectral

The 40/40I, a multi spectrum based on three IR bands (IR3), detects fuel and gas fires at long distances with the highest immunity to false alarms. The 40/40I IR3 can detect a 1ft2 (0.1 m2) gasoline pan fire at 215 ft (65m) in less than 5 seconds. The 40/40I is the most durable and weather resistant flame detector currently on the market. Its new features include a heated window, to eliminate condensation and icing; HART capabilities for digital communications; lower power requirements; and a compact, lighter design. Due to increased reliability, the 40/40 Series warranty period has been extended to 5 years and is SIL2 (TUV) approved to IEC 61508. Multi Spectrum Design - for long distance detection and high false alarm immunity Sensitivity Selection - to ensure no zone crossover detection Automatic and Manual Built-In-Test (BIT) - to assure continued reliable operation Heated Window - for operation in harsh weather conditions (snow, ice, condensation) Multiple Output Options for maximum flexibility and compatibility Relays (3) for Alarm, Fault and Auxiliary 0-20mA (stepped) HART Protocol for maintenance and asset management RS-485, Modbus Compatible High Reliability - MTBF - minimum 150,000 hours Approved to Safety Integrity Level 2 (SIL2 – TUV) 5-Year Warranty User Programmable via HART or RS-485 Hazardous area zones: Zones 1 & 2 with IIC gas group vapors present Zones 21 & 22 with IIIC dust type present Ex approved to: ATEX & IECEx FM/FMC/CSA TR CU (EAC) 3rd party Performance Tested EN54-10 (VdS) FM3260 Marine Approval MED "Wheelmark" approval (DNV) Reliability IEC61508-SIL2 (TUV)
