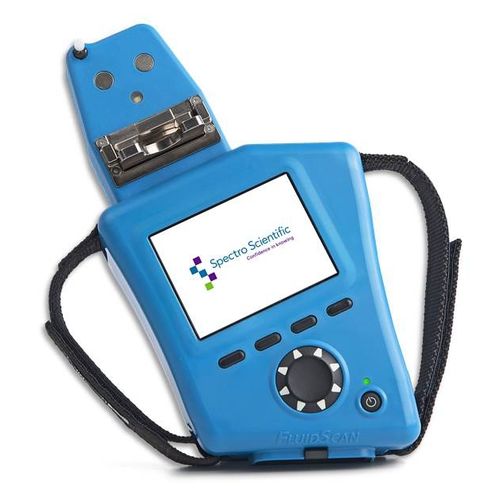

Oil condition sensor FluidScan® 1000 series

FluidScan is a handheld Infrared analyzer for lubricant and grease condition and contamination monitoring The FluidScan® 1000 series handheld Infrared oil analyzer provides direct quantitative measurement of a lubricant’s condition and plays an important role in Machine Condition Monitoring (MCM) for proactive and predictive maintenance in Reliability Management programs. It determines when oil needs to be serviced due to degradation of the oil chemistry or contamination by other fluids such as water or the wrong oil. It is compliant with ASTM D7889 “Standard Test Method for Field Determination of In-Service Fluid Properties Using IR Spectroscopy”. Dedicated Direct Infrared Spectrometer No moving parts, designed for handheld and field use applications Multivariate calibration with unique oil-specific algorithms Needs just one drop of oil and one minute to test No solvents required to clean Color-coded, user adjustable alarm limits Determine when in service oil not fit for use Direct immediate measurement of water, TAN and oxidation for lubricants used in gearboxes, turbines and hydraulic systems Also measures TBN, water, glycol, soot, additive depletion and oxidation for engine oil Highly repeatable and reproducible results ASTM D7889 Compliant – “Standard Test Method for Field Determination of In-service Fluid Properties Using IR Spectroscopy” Excellent correlation to KF water, TAN and TBN laboratory tests Reproducibility and repeatability comparable to benchtop FTIR method ASTM E2412 Data analysis compliant to ASTM E1655 Over 850 fluids for immediate operation Full application library based on equipment use
