Anchor bracket

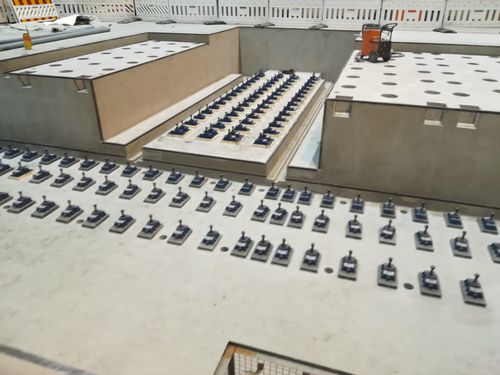

Support for alignment CP 55/65 is suitable for loads of up to 30 t/m². The complete support for alignment consists of a foundation anchor which is poured into the concrete and the actual adjustment element which is screwed into the plates. With this element, the plate can be firmly anchored in the foundation and precisely adjusted in regard to tension and pressure. The scope of delivery comprises the complete element including the foundation anchor and steel cover for the tooluing plate. Subsequent realignment of the plate towards the engine bed is possible at any time from the plate surface Spinelli in addition to producing leveling machine tool quality has specialized, for a decade now, in their installation in pre-assembly phase. Manufacturers and installers know this system for the following advantages: • Savings • Reduced assembly time of the machine • Ensuring better performance of the jet grouting of leveling • Possibility of complete waterproofing and painting of the foundation. Spinelli is also able to build foundations "turnkey" by running: • Geological • Engineering and static calculations • Performance jets • Waterproofing and painting • Laying leveling • Static testing
