Universal data-logger S2C-2 Sensor Signal ConvertervoltageUSBRS-232
Add to favorites
Compare this product
Characteristics
- Measured quantity
- voltage, universal
- Connector type
- USB, RS-232
- Display
- without display
- Applications
- for refrigerators, for pharmaceutical applications, for monitoring, for cold storage, rain gauge, for gas, thermal mass flow meters, for food applications, for medical applications, for solar sensors, drying, potentiometric sensor, hydraulic system, for bulk materials storage, environmental, for thermocouples, incubator, for ultrasonic meters, for photovoltaïc installations, for water meters, for compressed air, cryogenic, for gas meters, freight transportation, for flow meters, for freezers, for cold chain monitoring, for meteorological sensors, dynamometer, for power generation, laboratory, for the oil and gas industry, for strain gauges, for logistics, for automotive applications, high-temperature
- Other characteristics
- programmable, compact, multi-channel, rugged, with connector, with replaceable sensor, portable, multifunction, continuous, climatic, air, computer-based, low-consumption
Description

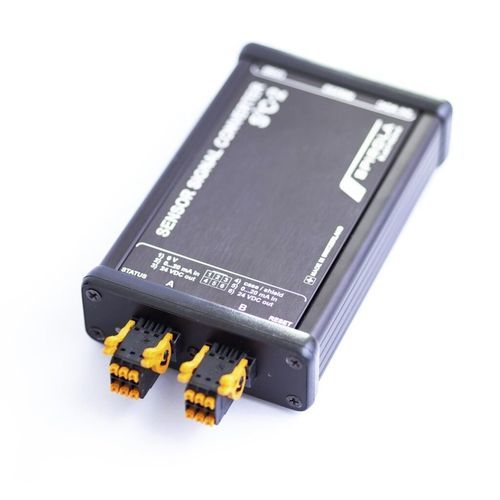

Sensor Signal Converter S2C-2 with USB & RS-232
The S2C-2 Sensor Signal Converter is a compact signal conditioner for evaluating standardized industrial sensor signals. It enables the simultaneous acquisition of up to four sensors and allows direct connection to PC-based systems via USB or RS-232.
The S2C-2 supports configurable current and voltage signals, ensuring maximum compatibility with nearly all common standard sensors. Thanks to its minimal measurement tolerances, the device is ideally suited for high-precision analyses in demanding and critical application areas such as laboratory testing, industrial measurement technology, and development.
The converter features galvanic isolation between the power supply and the load side. With a test voltage of 1 kV, safe and potential-free signal transmission is ensured, even in electrically demanding environments.
Thanks to its compact desktop design and robust industrial housing, the S2C-2 can be used flexibly. Both in laboratory test setups and in close proximity to machinery. The integrated RS-232 interface also enables convenient remote operation over long distances.
The free S2C data logging software for Windows allows quick commissioning without any programming knowledge. For custom applications, software drivers including programming examples for C# and LabVIEW are available. We will be happy to advise you on your specific requirements.
The S2C-2 is the ideal solution for precise, reliable, and flexible evaluation of industrial sensor signals in automation, measurement technology, quality assurance, and development.
Technical Data
Variants
Mechanical Characteristics
The S2C-2 Sensor Signal Converter is a compact signal conditioner for evaluating standardized industrial sensor signals. It enables the simultaneous acquisition of up to four sensors and allows direct connection to PC-based systems via USB or RS-232.
The S2C-2 supports configurable current and voltage signals, ensuring maximum compatibility with nearly all common standard sensors. Thanks to its minimal measurement tolerances, the device is ideally suited for high-precision analyses in demanding and critical application areas such as laboratory testing, industrial measurement technology, and development.
The converter features galvanic isolation between the power supply and the load side. With a test voltage of 1 kV, safe and potential-free signal transmission is ensured, even in electrically demanding environments.
Thanks to its compact desktop design and robust industrial housing, the S2C-2 can be used flexibly. Both in laboratory test setups and in close proximity to machinery. The integrated RS-232 interface also enables convenient remote operation over long distances.
The free S2C data logging software for Windows allows quick commissioning without any programming knowledge. For custom applications, software drivers including programming examples for C# and LabVIEW are available. We will be happy to advise you on your specific requirements.
The S2C-2 is the ideal solution for precise, reliable, and flexible evaluation of industrial sensor signals in automation, measurement technology, quality assurance, and development.
Technical Data
- Number of channels: 4
- Sensor inputs:
- 0 - 20mA
- 4 - 20mA
- 0 - 5 V
- 0 - 10 V
- Interfaces: USB, RS-232
- Baud rate: 115200
- Measurement rate: 10 measurements per second
- Sensor current: 12 mA at 24 V
- Power consumption: 0.3 W
- Galvanic isolation: test voltage 1 kV
- Software: S2C Data Logging Software, free of charge
- Operating systems: Windows 7 / 8 / 8.1 / 10 / 11
Variants
- 4x Voltage inputs (18.0300.5.0001)
- 4x Current inputs (18.0300.5.0002)
- 2x Current inputs and 2x Voltage inputs combined (18.0300.5.0003)
Mechanical Characteristics
- Dimensions: 135 × 82 × 30 mm (without connectors)
- Weight: 320 g (without cable)
