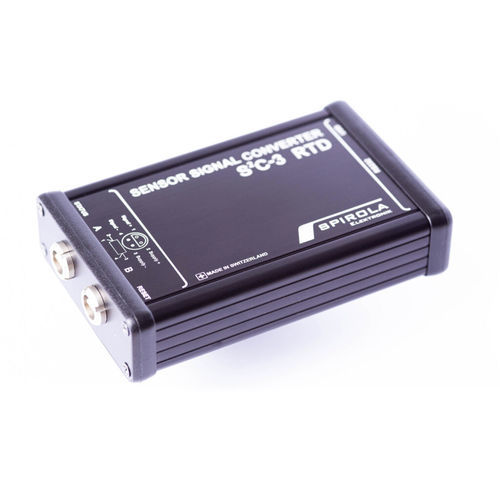

Temperature data-logger S2C-3 Sensor Signal ConverterUSBRS-232Pt100
Add to favorites
Compare this product
Characteristics
- Measured quantity
- temperature
- Connector type
- USB, RS-232
- Sensor type
- Pt100, Pt1000
- Display
- without display
- Applications
- for food applications, for monitoring, for pharmaceutical applications, for ovens, for medical applications, for cold storage, for bulk materials storage, environmental, for thermocouples, for cold chain monitoring, for meteorological sensors, high-temperature, for freezers, for refrigerators
- Other characteristics
- continuous, programmable, climatic, compact, multi-channel, with connector, portable, intelligent, with replaceable sensor, computer-based, low-consumption, with external sensor, multifunction, electronic, dual-channel, air, with probe
Description
PT100 / PT1000 Temperature Converter S2C-3 with USB & RS-232
The S2C-3 sensor signal converter is a compact signal conditioner for PT100 and PT1000 resistance temperature detectors (RTDs) and enables the direct connection of two temperature sensors to PC-based systems. Via USB or RS-232, the device communicates reliably with the connected computer or controller using Modbus RTU.
The converter features galvanic isolation between the power supply and the load side. With a test voltage of 1 kV, safe, floating signal transmission is ensured. This makes it ideal for industrial measurement environments, laboratory applications, and test benches.
Thanks to its robust industrial housing, the S2C-3 is suitable for continuous operation in demanding environments. The free data acquisition software for Windows allows quick commissioning without any programming knowledge. For custom applications, software drivers including programming examples for C# and LabVIEW are available.
The S2C-3 is the ideal solution for precise temperature measurements in industrial automation, metrology, quality assurance, and development.
Technical Data
Variants
Mechanical Characteristics
The S2C-3 sensor signal converter is a compact signal conditioner for PT100 and PT1000 resistance temperature detectors (RTDs) and enables the direct connection of two temperature sensors to PC-based systems. Via USB or RS-232, the device communicates reliably with the connected computer or controller using Modbus RTU.
The converter features galvanic isolation between the power supply and the load side. With a test voltage of 1 kV, safe, floating signal transmission is ensured. This makes it ideal for industrial measurement environments, laboratory applications, and test benches.
Thanks to its robust industrial housing, the S2C-3 is suitable for continuous operation in demanding environments. The free data acquisition software for Windows allows quick commissioning without any programming knowledge. For custom applications, software drivers including programming examples for C# and LabVIEW are available.
The S2C-3 is the ideal solution for precise temperature measurements in industrial automation, metrology, quality assurance, and development.
Technical Data
- Sensor types: PT100 / PT1000
- Number of channels: 2
- Interfaces: USB, RS-232
- Baud rate: 115200
- Measurement rate: 10 measurements per second
- Sensor current: 12 mA
- Supply voltage: 5 V DC via USB
- Power consumption: 0.3 W
- Galvanic isolation: test voltage 1 kV
- Software: S2C DataLogging Software, free of charge
- Operating systems: Windows 7 / 8 / 8.1 / 10 / 11
Variants
- S2C-3 with spring clamp terminals (18.0350.5.0001)
- S2C-3 with Lemo 1 4-pin socket (18.0350.5.0002)
Mechanical Characteristics
- Dimensions: 135 × 82 × 30 mm (without connectors)
- Weight: 320 g (without cable)
