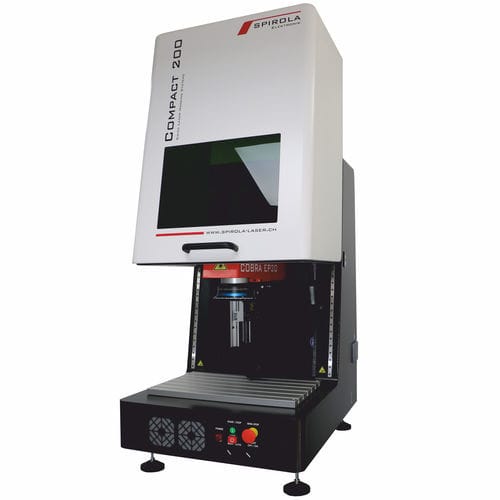

Laser marking system Compact 200

tagdata matrixbarcode

Swiss quality laser marking system developed from practical experience Our new mobile COMPACT 200 desktop laser marking device offers numerous innovations and features. The patented machine design, in which we have placed great emphasis on ergonomics, functionality, and design, is thoroughly impressive. The completely redesigned system concept offers maximum flexibility and simplified operation during setup and laser marking. A new, intuitive operating concept with clearly arranged controls enables quick and easy setup/configuration of the COMPACT 200. Technical data - Mobile desktop workstation - Optimal 180° accessibility to the work area without restrictions - Electric or manual lift door with large laser safety glass - Motorized Z-axis (travel distance 400 mm) - Max. part size approx. 500 x 300 x 150 mm (W x D x H) - Compatible with all COBRA laser beam sources from 20-100W - Extremely easy to operate with minimal setup times - 230V / 10A connection, air-cooled - Dimensions 1300 x 600 x 892 mm (H x W x D) - Weight: 120kg
