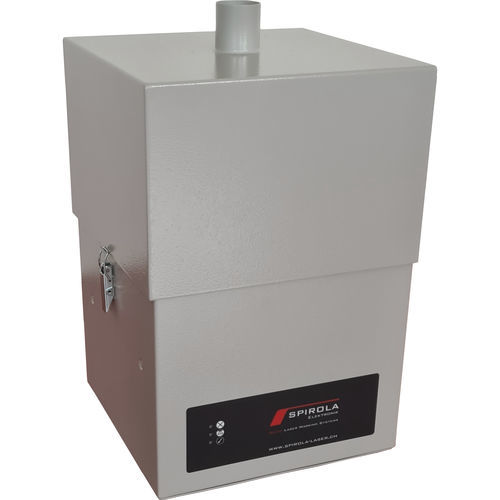

Stationary fume extractor AD-Access

industrialactivated carbon filterdust

The AD-Access is characterised by its compact design, which has been achieved despite the powerful suction motor. It is ideally suited for extracting fine dust and laser fumes. The unit is equipped with a three-stage filter system comprising a pre-filter and a two-stage activated carbon filter. The filter system is designed to reliably remove fine dust from various materials such as aluminium, steel, copper and plastics from the air. The three signal LEDs indicate when the filter needs replacing and whether there is a fault in the extraction system. The system’s suction power can be adjusted within a range of 100 to 180 m³/h.

Technical specifications:
- Airflow capacity: 100–180 m³/h
- Pre-filter: 95% @ 0.9 microns
- 2-stage activated carbon filter: 99.997% @ 0.3 microns
- Dimensions: 325 x 510 x 310 mm (WxHxD)
- Weight: 24 kg
- Power: 135 W
- Electrical connection: 115–230 V AC / 50–60 Hz / 0.9 A
