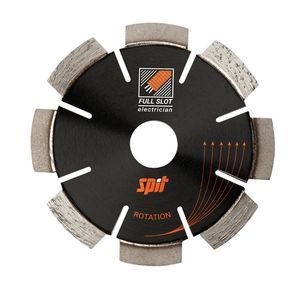

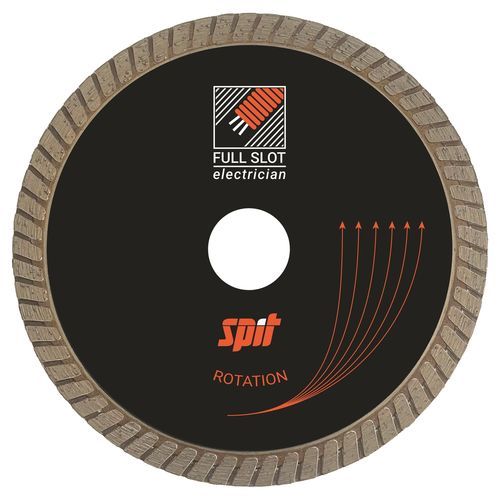

Cutting saw blade LIGHT KALK WALL CHASING BLADES FULLSLOT

diamondfor concretehigh-speed

Product overview
High-speed diamond wall-chasing blades (FULLSLOT) for direct cutting and single-pass creation of full grooves in sand-lime brick (silicate blocks) and aerated concrete. Designed to deliver a clean groove with dust management when used with compatible extraction.

Features and benefits

• +40% time saving: eliminates chiselling — groove produced in a single pass.
• Worksite cleanliness: debris and dust removed immediately when used with compatible vacuum (e.g. SPIT AC 1630 P/PM/PH).
• Installation-ready: facilitates immediate embedding of 16 mm and 20 mm conduits.
• Compatibility: for use with SPIT D90 wall chaser and Diaquick quick-mount system.
• Safety: blade alignment indicators ensure correct installation. Compliant with EN13236 and oSa.

Applications

• Embedding 10 mm cables and 16 mm, 20 mm or larger conduits.
• Suitable for walls and floors in new build and renovation projects.
• Maximum cutting depth: 37 mm; maximum cutting width: 21 mm.

Substrates

• Aerated concrete
• Sand-lime brick (silicate blocks)

Safety / Personal protective equipment

• Safety glasses
• Protective gloves
• Hearing protection
• Site helmet

Technical specifications

• Product type: High-speed diamond wall-chasing blade (FULLSLOT)
• Suitable materials: sand-lime brick (silicate blocks), aerated concrete
• Max cutting depth: 37 mm
• Max cutting width: 21 mm
• Designed for embedding: 10 mm cables and 16 mm / 20 mm conduits (and larger)
• Compatibility: SPIT D90 wall chaser with Diaquick quick-mount system
• Dust management: compatible with SPIT AC 1630 P, PM or PH vacuum cleaner for dust-reduced groove creation
• Standards: compliant with EN13236 and oSa
• Installation aid: blade alignment indicators for correct mounting
