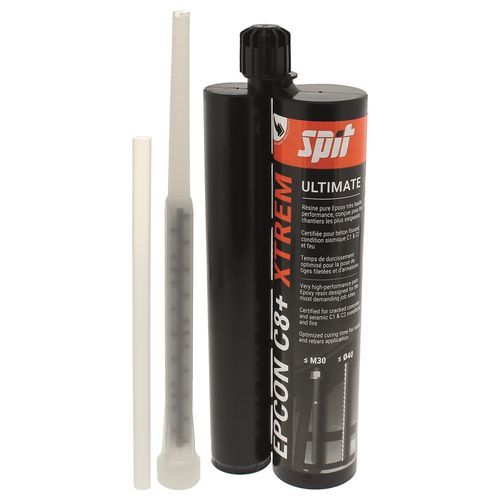

Epoxy resin EPCON C8+ XTREM

for concretehigh-performance

Product promise
EPCON C8+ XTREM is a pure two-component epoxy resin formulated for permanent fixing of studs and post-installed rebars in cracked and non-cracked concrete, including seismic conditions classified C1 and C2.

Features and benefits

• ETA approved for studs M10 to M30 in cracked and non-cracked concrete
• ETA approved for rebars Ø10 to Ø40 mm
• Approved for studs in seismic applications C1 & C2
• 4 hours fire approval
• Designed for heavy-duty structural anchoring
• Approved for hammer and diamond drilled holes
• Suitable for dry, wet and flooded hole conditions
• VOC rating A+
• WRAS, LEED and BREEAM attestations
• 18 months shelf life
• System working life up to 120 years

Approvals

• TRUECE
• TRUEETA
• TRUEFIRE
• TRUEIEXPERT
• TRUEXTREM

Applications

• Post-installed rebar (structural connections, reinforcement repair)
• Structural steel anchoring: safety barriers, balustrades, guard rails
• Infrastructure & civil engineering: bridges, airports, foundations

Substrates

• Concrete
• Cracked concrete
• Non-cracked concrete

Safety

• Safety glasses recommended
• Protective gloves recommended

Product range
Short item description | Volume | Quantity per first packaging (Level 0) | BREEAM Tested | LEED Tested | EMICODE EC1 plus | Eurocode
EPCON C8+ XTREM 450ML | 450 ml | 1 | True | True | True | 060244

Consumables (selected items from product page)
Category: Threaded Studs - Zinc Plated
Short item description | Anchor thread diameter (Metric) | Anchor length | Drill hole diameter | Min. drilling depth (mm) | Max. fixing thickness (mm) | First packaging unit (Level 0) | Quantity per first packaging (Level 0) | Eurocode
Threaded Stud Standard M8 x 110 | M8 | 110 mm | 10 mm | 80 mm | 20 mm | CARDBOARD BOX | 10 | 055800
Threaded Stud Standard M10 x 130 | M10 | 130 mm | 12 mm | 90 mm | 25 mm | CARDBOARD BOX | 10 | 055801
Threaded Stud Standard M12 x 160 | M12 | 160 mm | 14 mm | 110 mm | 30 mm | CARDBOARD BOX | 10 | 055802
Threaded Stud Standard M16 x 190 | M16 | 190 mm | 18 mm | 125 mm | 45 mm | CARDBOARD BOX | 10 | 055803

Category: Threaded Studs - Stainless Steel with setting tool (A4)
A4 THREADED STUD M10x130/20 | M10 | 130 mm | 12 mm | 90 mm | 20 mm | CARDBOARD BOX | 10 | 060223
A4 THREADED STUD M12x160/25 | M12 | 160 mm | 14 mm | 110 mm | 25 mm | CARDBOARD BOX | 10 | 060224
A4 THREADED STUD M16x190/35 | M16 | 190 mm | 18 mm | 125 mm | 35 mm | CARDBOARD BOX | 10 | 060225
A4 THREADED STUD M20x260/65 | M20 | 260 mm | 25 mm | 170 mm | 65 mm | CARDBOARD BOX | 10 | 060226
A4 THREADED STUD M24x300/65 | M24 | 300 mm | 28 mm | 210 mm | 63 mm | CARDBOARD BOX | 10 | 060227

Category: ATP Sockets (female sockets to be used with SPIT chemical mortar)
ATP M10x65 | M10 | 65 mm | 20 mm drill | Min drilling depth 70 mm | Packaging CARDBOARD BOX | 10 | Eurocode 062480
ATP M12x120 | M12 | 120 mm | 18 mm drill | Min drilling depth 125 mm | Packaging CARDBOARD BOX | 25 | Eurocode 062500
ATP M12x75 | M12 | 75 mm | 24 mm drill | Min drilling depth 80 mm | Packaging CARDBOARD BOX | 10 | Eurocode 062760
ATP M8x60 | M8 | 60 mm | 14 mm drill | Min drilling depth 65 mm | Packaging CARDBOARD BOX | 10 | Eurocode 062770

Category: Mixers / Mixing system
MIXER EPOXY | First packaging unit BAG | Quantity per first packaging (Level 0) 10 | Eurocode 060236
MIXER LARGE VOLUME | BAG | 10 | Eurocode 055837

Technical downloads (available documents listed on page)

• ETA Approval - CHEMICAL EPCON C8+ XTREM_SPIT_PostInstalledRebar_TR069_25-1087_TEC_ETA_EN
• ETA Approval - CHEMICAL EPCON C8+ XTREM_SPIT_StudsBars_EN1992-4_25-1086_TEC_ETA_EN
• ETA Approval - CHEMICAL EPCON C8+ XTREM_SPIT_PostInstalledRebar_EC2_25-1085_TEC_ETA_EN
• ETA Approval - CHEMICAL EPCON C8+ XTREM_SPIT_PostInstalledRebar_EC2-120Y_25-1088_TEC_ETA_EN
• Technical Datasheet - CHEMICAL_EPCON_C8+_XTREM_SPIT_TEC_TD_EN
• Technical Datasheet (FR) - CHEMICAL_EPCON_C8+_XTREM_SPIT_TEC_TD_FR
• Technical Datasheet - CHEMICAL_EPCON_C8+_XTREM_SPIT_REBAR_TEC_TD_EN
• Technical Datasheet (FR) - CHEMICAL_EPCON_C8+_XTREM_SPIT_REBAR_TEC_TD_FR
• Technical Datasheet - CHEMICAL_EPCON_C8+_XTREM_SPIT_CONCRETE_TEC_TD_EN
• Technical Datasheet (FR) - CHEMICAL_EPCON_C8+_XTREM_SPIT_BETON_TEC_TD_FR
• Declaration of Performance - CHEMICAL_EPCON_C8+_XTREM_SPIT_TEC_DOP_EN
• Declaration of Performance (FR) - CHEMICAL_EPCON_C8+_XTREM_SPIT_TEC_DOP_FR
• Safety Datasheet Resin (FR)
• Safety Datasheet Resin (EN)
• Safety Datasheet Hardener (EN)
• Safety Datasheet Hardener (FR)
• BREEAM Attestation
• LEED Attestation

Technical specifications

• Product type: Pure epoxy resin (two-component chemical mortar)
• Application: Fixing studs and rebars in cracked and non-cracked concrete; seismic C1 & C2 applications
• Stud range: M10 to M30 (ETA approved)
• Rebar range: Ø10 to Ø40 mm (ETA approved)
• Fire resistance: 4 hours fire approval
• Hole types approved: Hammer drilled and diamond drilled
• Hole conditions: Suitable for dry, wet and flooded holes
• VOC rating: A+
• Attestations: WRAS, LEED, BREEAM
• Shelf life: 18 months
• Working life: up to 120 years (system life expectancy)
• Eurocode / Item code (product example): 060244 for EPCON C8+ XTREM 450ML
