Tilt indicator TiltWatch® Plus

labeleasy to installirreversible

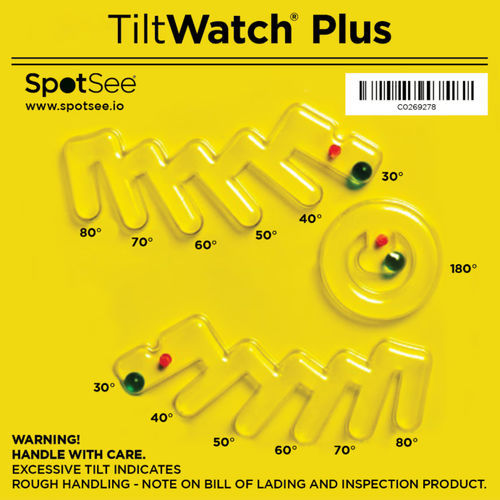

Degree of tilt detection Complete overturn detection Glass balls (non-magnetic) Tamper-proof Details TiltWatch Plus indicates whether there has been tilt to the left or right, the degree of the tilt, or if complete overturn has occurred. TiltWatch Plus consists of three separate indicators in a single unit: One section indicates the degree of tilt to the left The second section indicates the degree of tilt to the right The third section indicates total overturn Applications Biotechnology and Drugs Office Equipment Medical Devices and Supplies Appliances Construction Supplies and Fixtures Agriculture Logistics / Transport and Storage Computer Hardware Auto and Truck Parts Packaging/Crating Auto and Truck Manufacturers Chemicals/Petro-Chemicals Energy and Utilities Scientific and Technical Instruments Consumer Electronics Electronics Art HVAC Industrial Equipment Furniture and Fixtures Aerospace and Defense Specifications Activation Angle: 10° increments from 30° axis (±5°) Monitoring Range: Single plane and rollover Adhesive: 1 mil high tack acrylic Humidity Tolerance: 5% to 99% noncondensing Temperature Tolerance: -40°C to 60°C Composition: Clear PTE housing and plastic indicator Size: 116.84 mm x 116.84 mm x 7.62 mm Installation: Pressure-sensitive adhesive exposed when liner and arming pin are peeled away Adhesive Shelf Life: 12 months (before application)
