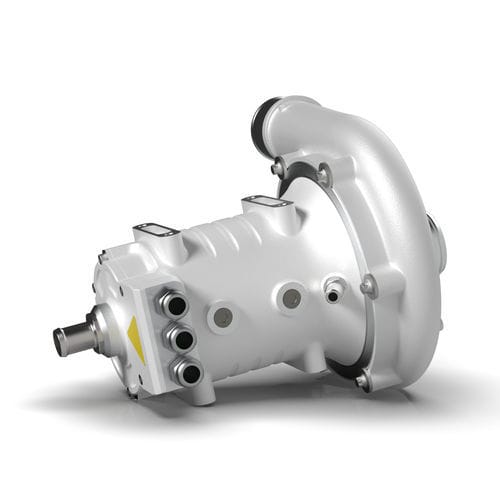

Centrifugal compressor S27airelectricfixed
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Type
- air
- Power source
- electric
- Portability
- fixed
- Lubrication
- oil-free
- Application domain
- for marine applications
- Applications
- for trucks, for hydrogen fuel cell
- Voltage
- 400 V
- Other characteristics
- compact
- Power
25.6 kW
(34.81 hp)- Weight
7.5 kg
(16.5 lb)
Description
S27 fuel cell eCompressor offers a continuous input power of 25kW, with an input voltage of 400-750VDC. We use oil-free, contactless air bearings that reach a continuous working speed of 100,00 rpm.
By implementing our unique/patented motor and system design, S27 has the highest power density level in the industry: 25 kW compressor weighs 98% in high power zone.
Due to the high quality of high-speed rotor manufacturing, and a unique in-house process for rotor assembly and post-assembly precision machining, S27 is able to deliver optical, mechanical, and electrical performances and reliability.
Key benefits
More reliable system
Contactless bearings
Product specifications
Input voltage: 400-750VDC
Rated speed: 100,000 rpm
Maximum pressure ratio: 3.5 PR ++100g/s
Maximum flow rate: 200g/s ++2.8PR
Shaft power: 25.6kW continuous
Overall efficiency: Peak 75% (Controller incl.)
