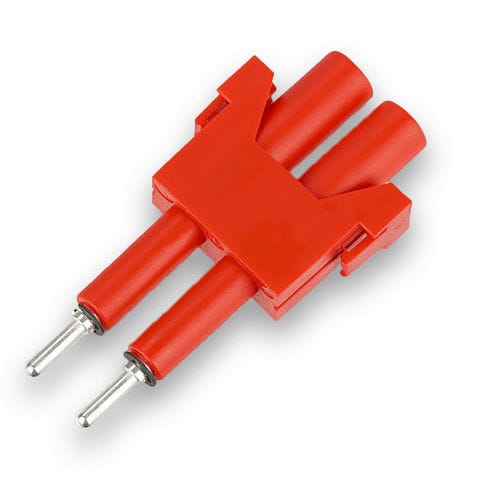

High-voltage electrical plug ST 22-h

2-poleindustrial

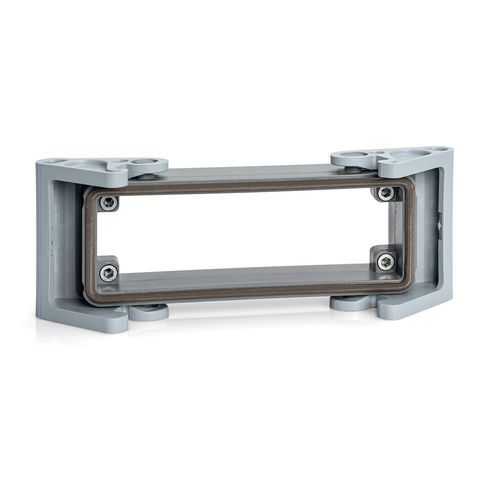

• Application: Flexible plug connection for test systems / adapters • Number of poles max. 14 high-voltage poles • Voltage / current: Max. 10,000 V / 30 A • Modules: High voltage, mains voltage and compressed air These flexible high-voltage connectors can be used for voltages of up to 10,000 V and for currents of up to 30 A. The housing for the plugs and sockets can accommodate up to 7 modules, with each high-voltage module having 2 connections. Modules for compressed air (with 2 connections) and for mains voltage (with 10 connections) are also available. The configuration can be freely selected, resulting in up to 1,000 different combinations.
