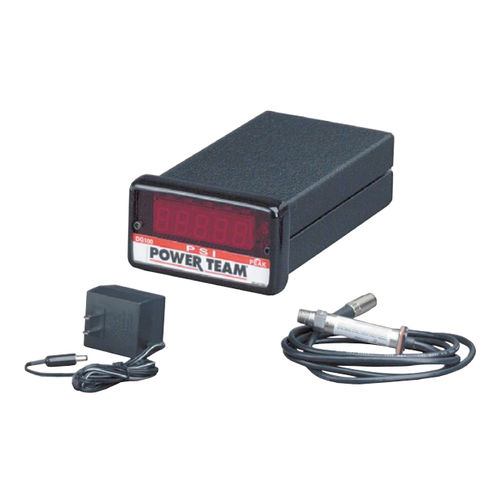

Pressure gauge for hydraulic applications DG100 series
absolutewith LED display

Pressure gauge for hydraulic applications - DG100 series - SPX Hydraulic Technologies - absolute / with LED display
Pressure gauge for hydraulic applications - DG100 series - SPX Hydraulic Technologies - absolute / with LED display
Add to favorites
Compare this product

Characteristics

Pressure type
absolute
Display
with LED display
Applications
for hydraulic applications
Pressure

Max.: 10,000 psi

Min.: 0 psi

Description

DG100 Digital Pressure Gauges • Accurate to within 1%, Long-life pressure transducer. • Pressure values are displayed on large red LEDs in 10 psi or bar increments. When power cable is connected to gauge, display will scroll all characters, performing a self-diagnostic routine. • "Peak" hold feature with reset toggle switch and "Peak On" indicator; Hi/Low set point feature with relay outputs for Hi/Low alarms and/or control signals. • A slow flashing display indicates pressure below the low limit. Fast blinking display alerts if limit is exceeded. • Operating temperature of 0 to 140°F for the electronic display and -20 to 180°F for the transducer.
