CAD software eDrawings

2D3D

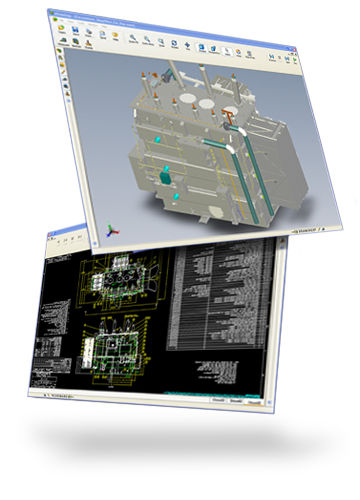

In addition to 2D drawings, SPX Waukesha can now provide detailed 3D models that customers can manipulate on their own computers to better see their transformer designs using a simple and efficient tool called eDrawings. Our engineering department can quickly share these approval drawings and corresponding 3D models via e-mail to better facilitate the design approval process. eDrawings has no licensing costs associated with it, and it requires no CAD experience to use. It provides useful mark-up and dimensioning tools, small file sizes and powerful collaboration tools to help communicate ideas and transformer design information between all involved parties faster than ever before.
