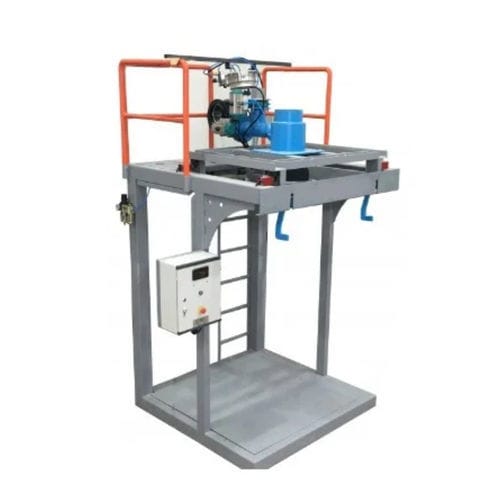

Vibrating big-bag filling machine

for granulatesautomaticfor powders

Big Bag Bagging Scale is an automatic bagging machine used for bagging up to 500kg, 1000kg, 2000kg of bulk materials such as Hazelnuts, Granules, Plastic, Sugar, Salt, Granular Chemicals, Feed, Grain, Pulses, Cement, Construction Chemicals, Small Grain Mining Products. It is manufactured with a bag capacity from 500 kg to 2000 kg and a filling capacity of 10 t/h – 20 t/h. The ready bag comes to the filling point. The filling mouth goes down and the bag mouth is compressed. The bag mouth is inflated with the air supplied to the tire at the throat of the big bag weighbridge, thus compressing the bag mouth. Bag filling is started by opening the flap under the screw or vibro feed. When the bag weight reaches the desired values, the feeder stops and the lower flap closes. After the bag weighing is completed, the hooks carrying the bag open automatically and release the bag. The filling opening of Srd Makina big bag filling scales varies depending on the product type. Scale filling can be belt fed, screw fed, vibro fed and free flow. Big bag scales are generally used for packaging chemical products. Belt feeding system is used to fill non-free flowing powder and granular products into big bags. It does not allow the granular product to break. The screw feeding system is used for bagging non-free flowing powder product. Vibro feeding system is used to fill the granular product into big bags. The free flow system is used for granular and granular products that are easy to flow.
