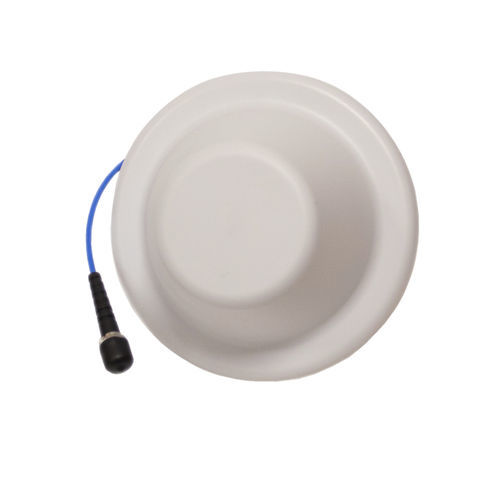

RF antenna

internalcompactindoor

Antenna is the interface between subscribers and network. lt is often seen as the last point of contact of a RF network with subscribers. lndoor antenna requires not only electrical performance that guarantees a good connection and signal transmit and receive with subscriber devices but also maintain a low visual impact to general public. Frequency range - 698-960 / 1425-6000 MHz Operation mode - SISO Number of ports - 1-port version Features - (1) compact size (2) low weight (3) quick and easy installation (4) for indoor use Polarization - Vertical PIM3 (dBc, @2x20W) - ≤ -153 Horizontal beamwidth (°) - 360 Input impedance (Ω) - 50 Max. input power (W) - 50 Lightning protection - DC grounded Connector - 4.3-10 female Reflector material - Aluminum Radome material - ABS (UV stabilized) Dimensions - 186 x 86 mm Weight - 0,25 kg Length feed cable - 28 cm Required borehole - Ø connector 2011/65/EC RoHS - Yes, conform
