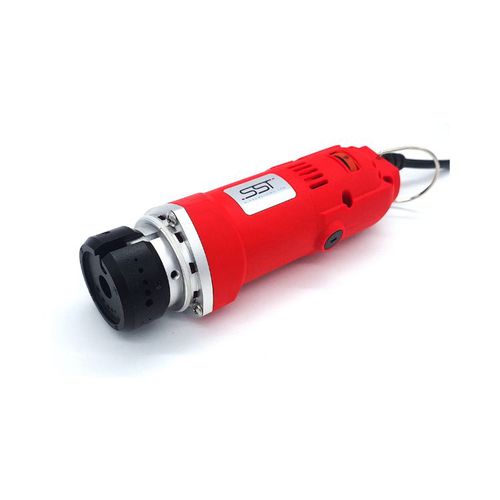

Electrode sharpening machine EGDC

angularuniversalmanual

Choose the EGDC grinding machine if you're looking for a reliable, high-performance tool to optimise your TIG welding operations. This new-generation electric tungsten grinding machine delivers precision, time savings and weld quality. Dorian can confirm that this machine is an excellent investment for those who want to combine durability with professional results - but remember to compare its features objectively with your specific requirements to be sure you're making the best choice. The EGDC electric tungsten grinding machine, designed to optimise the preparation of TIG welding electrodes, is available in two 220V~ 50/60Hz configurations (185W or 1050W), offering respectively a variable rotation speed of 8000 to 35000 rpm (with 6 speeds) or a fixed speed of 28000 rpm, a diamond wheel diameter of 34 mm, a grinding diameter ranging from 1.0 to 4.0 mm or up to 6.0 mm, a grinding angle adjustable from 15° to 60°, a minimum electrode length of 30 mm, and a weight varying between 0.8 kg and 1.6 kg.
