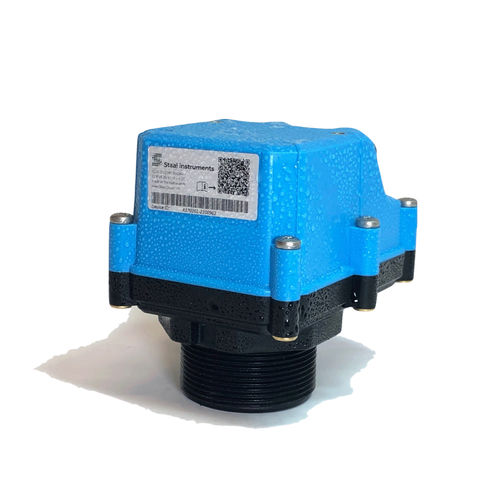

Cloud connected level sensor maxSHIFT60
radarfor waterfor fuel

cloud connected level sensor
cloud connected level sensor
cloud connected level sensor
cloud connected level sensor
cloud connected level sensor
cloud connected level sensor
cloud connected level sensor
cloud connected level sensor
cloud connected level sensor
cloud connected level sensor
cloud connected level sensor
cloud connected level sensor
cloud connected level sensor
cloud connected level sensor
cloud connected level sensor
cloud connected level sensor
cloud connected level sensor
cloud connected level sensor
cloud connected level sensor
cloud connected level sensor
cloud connected level sensor
cloud connected level sensor
cloud connected level sensor
cloud connected level sensor
cloud connected level sensor
cloud connected level sensor
Add to favorites
Compare this product


Characteristics

Technology
radar
Medium
for water, for fuel, for oil, for wastewater, for sludge, for corrosive liquids, for high-viscosity liquids, for aggressive liquids, for conductive liquids, for AdBlue
Interface
wireless
Applications
rugged, for fill monitoring, for small tanks, for sumps, for double-walled tanks, fuel tank, for industrial refrigeration, for OEM, for industrial applications, manhole, for silos, for the pharmaceutical industry, for leak detection, for corrosive environments, for basin, for CSO monitoring, river, for small access holes, for the food and beverage industry, for marine applications, for drip chambers, for medical applications, for boreholes, for automotive applications
Other characteristics
rugged, compact, high-precision, for bypass, smart, IP68, flange-mount, maintenance-free, submersible, programmable, with LED indicator, cloud connected, chemical-resistant, economical, with temperature measurement, corrosion-resistant, with data logger
Level range

Min.: 0.1 m
(0'03" )

Max.: 5 m
(16'04" )

Process pressure

Min.: 1 bar
(14.5 psi)

Max.: 8 bar
(116.03 psi)

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 60 °C
(140 °F)

Description

The maxSHIFT60 cloud level radar sensors enable the installation of a high-end radar level measurement system in a minute. Without the use of any power source or local network (LAN), these cloud level radar sensors operate everywhere you want. At your customers' site or in remote areas, and in any condition, you are always assured of reliable level measurements! Delivered with integrated global eSIM by Staal Instruments and already connected to Staal’s cloud platform, this cloud connected level sensor works out of the box. Works in toughest conditions
 Measurements are not effected by moisture, pressure or temperature changes. Wide temperature range. Chemical resistant and dirt repellant. High quality measurements 60GHz free space radar. 5m range with 2mm accuracy and narrow beam angle. Auto-calibration and measures through all plastic tank walls. Also double walled. Free of maintenance Works out of the box, no wires, stand-alone operation. 5 years of battery-life.Sensor health status monitoring and automatic firmware updates. Smart operation Remote sensor configuration and radar measurement quality analysis. GNSS and cellular location services. Multiple alert levels and e-mail notification. Environmental Operating ambient temperature range for the product from -40°C to +60°C. Ingress protection rating IP68, water proof 24hours at 2m depth. Interface: Cellular, global coverage, 4G/LTE-M CAT1 with 2G GPRS fallback. Power: Replaceable battery pack, up to 5 years lifetime Radar frequency: 60GHz Measurement accuracy: up to 2mm Radar beam width: 8° at -3dB Integrated sensor: temperature, RH
