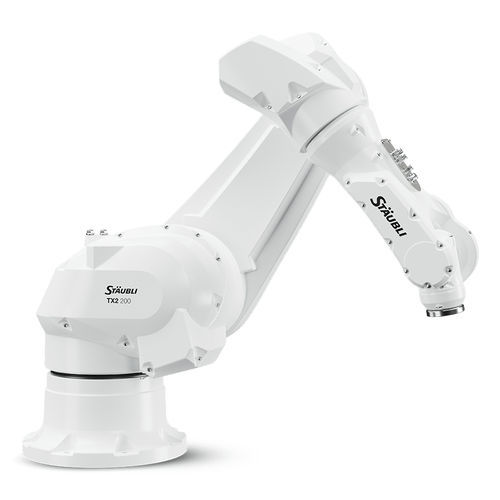

Hygienic robot TX2-200, TX2-200L stericlean
articulated6-axisfloor-mounted

hygienic robot
hygienic robot
hygienic robot
Add to favorites
Compare this product


Characteristics

Type
articulated
Number of axes
6-axis
Mounting
floor-mounted
Application domain
for the pharmaceutical industry, for clean rooms, laboratory
Protection level
IP67, IP65
Other characteristics
hygienic
Payload

Max.: 170 kg
(374.786 lb)

Min.: 110 kg
(242.508 lb)

Reach

Max.: 2,609 mm
(102.72 in)

Min.: 2,209 mm
(86.97 in)

Repeatability

Max.: 0.055 mm
(0.0022 in)

Min.: 0.045 mm
(0.0018 in)

Description

The TX2-200 Stericlean is designed to meet the stringent requirements of hydrogen peroxide (H²O²) decontamination process. It can operate in a Grade A/B environment for various applications in laboratory, batch testing or pharmaceutical production. ADVANTAGES OF THE TX2-200 STERICLEAN Designed for high risk sterile environments GMP (Good Manufacturing Practices) : Class A/B Completely resistant to hydrogen peroxide (H2O2) With their special joints and enclosed IP65 structure, Stericlean robots are designed to handle decontamination processes in VHP environments. Proven reliability Stericlean robots have proven their reliability time and time again in cleanroom, biotech, and pharmaceutical applications. Work in difficult environments To meet the needs of all markets, our robots come with an optional vertical cable outlet. It is located underneath the base for optimal protection of connections in sensitive environments. High precision, long life time and reduced maintenance Stäubli is the only robotics manufacturer to make its own reduction gear systems, specifically designed to cut down on maintenance and extend the life of the robot.
