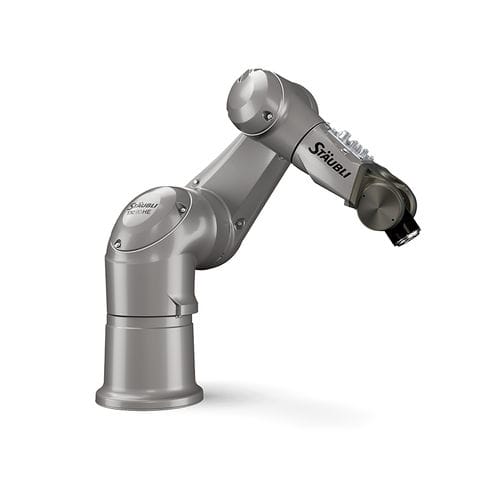

Articulated robot TX2-90, TX2-90L, TX2-90XL HE
6-axishandlingpackaging

articulated robot
articulated robot
articulated robot
articulated robot
articulated robot
articulated robot
articulated robot
articulated robot
Add to favorites
Compare this product


Characteristics

Type
articulated
Number of axes
6-axis
Function
handling, packaging, loading, unloading, cutting
Mounting
floor-mounted, ceiling-mounted, wall-mounted
Application domain
for the food industry, for the beverage industry, for wet environments
Other characteristics
waterproof
Payload

Max.: 14 kg
(30.865 lb)

Min.: 7 kg
(15.432 lb)

Reach

Max.: 1,450 mm
(57.09 in)

Min.: 1,000 mm
(39.37 in)

Repeatability

Max.: 0.04 mm
(0.0016 in)

Min.: 0.03 mm
(0.0012 in)

Description

The TX2-90 HE robot is part of the “Humid Environment” line developed specifically for processes in wet environments. The TX2-90 HE has been designed to resist corrosion even under extreme conditions. It can be used in very humid environments for applications such as water jet cutting, machine tool loading/unloading, and various food operations. Stands up to extreme conditions HE robots are designed to operate under extreme conditions thanks to their special stainless steel casing and screws. Compatible with the latest washing solutions HE robots are all compatible with the latest washing solutions and can operate in environments with a pH ranging from 4.5 to 8.5. No liquid retention areas or corrosion The design of the HE robot arm meets EHEDG recommendations. Connections are integrated into the robot body and all equipments are washable: surfaces are smooth and rounded to facilitate water runoff. Sensitive environments In HE robots the cable outlet is located under the base for optimal protection of connections in sensitive environments.
