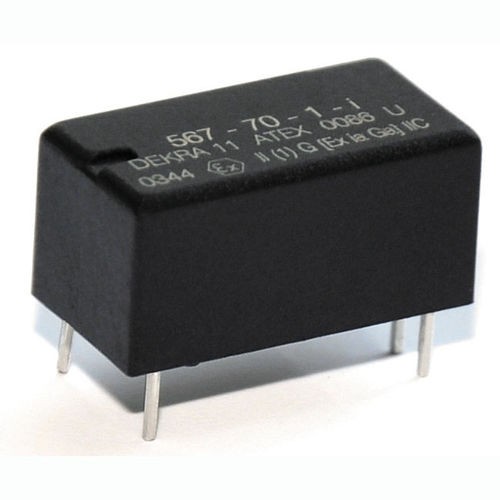

Optocoupler 567 Series

567 Series Optocouplers for the galvanic separation of intrinsic safety (EXi) circuits, Isolation voltage min. 4 kVDC, cutoff 500 kHZ, ATEX Certified (11ATEX 0086, DIN EN 60062). Insulation resistance input /output up to 10^13 Ω. Distance between input and output for highest safety requirements up to 14 mm. Galvanic separation and minor coupling capacitance between input and output circuit. Analog & digital signal transfer is possible. Minor output delay times compared to relays. Long life due to non mechanical wear. Magnetic fields do not impact operation. A photo-diode makes for very short cycle times. Able to invert the output signal during transfer. Specifications Isolation Voltage Input/Output Min. (V DC) 4000 Output Current lo (mA) Max. 50 Supply Voltage (V DC) Max 5 Turn On/Off Time(µsec) 0.5/0.5 Creeping Distance, Air Path I/O Min. (mm) 14 Ambient Temperature °C -20 to 85 Applications Any factory that requires high isolation and non-arcing environments, flammable gas processing plants, medical processing plants where ESD could be a real problem, mining operations
